Phoenix Contact: Miniature connectors

Phoenix Contact expanded its M12 connector range for power transmission in industrial environments with S-coded flush-type connectors and cordsets rated to 16 A and 630 V.

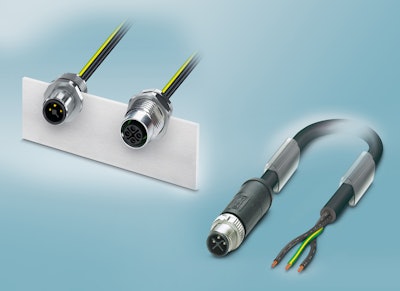

M12 connector
M12 connector

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

Ratings are per IEC; UL 2237 is pending. Standard S-coded connectors, rated to 12 A, are also available.

They have two positions and protective earth ground (2+PE). The panel-mount connectors are pre-assembled with 0.5 meter long wires with conductor cross section of 1.5 mm² (16 AWG). This M12 circular connector system is suitable for use as a main power connector, with IP67 protection and the robust metal M16 X 1.5 panel-mount thread.

The compact panel-mount connectors are available in pin and socket versions for front and rear mounting. The unshielded cable cordsets are available in lengths of 1, 2, 5 and 10 meters, with both straight and right angle heads. Both male and female pigtail versions are offered as standard articles. Double-ended cordsets can be manufactured on request through the Phoenix Contact solution center.
