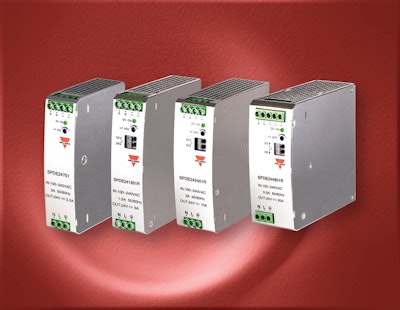

Carlo Gavazzi SPDE Series ultra-compact single-phase DIN-rail power supplies are designed for electrical panels. The SPDE Series consists of three frame sizes, starting from 75 W with 32-mm width, through a 480 W with 48-mm width. Their ultra-compact housing design allows them to save up to 50% panel space, making them ideal for applications where space is limited.
The SPDE series is certified by a series of industry approvals: CE, UKCA, UL61010, and UL62368. Integrated diagnostic and protection functions, such as output short circuit, over current, over voltage, and over temperature, provide the user with maximum output protection.
The supplies’ main technical features include:
• Universal input voltage range: 90 VAC to 264 VAC; 120 VDC to 370 VDC
• Output voltage range 12 VDC, 24 VDC, or 48 VDC
• Max. Output power ranges from 75W to 480 W
• Ultra-compact dimensions
• Built-in active PFC for higher efficiency (only in SPDE R models)
• DC OK relay indication (only in SPDE R models)
• Efficiency up to 94%
• Overvoltage category II
