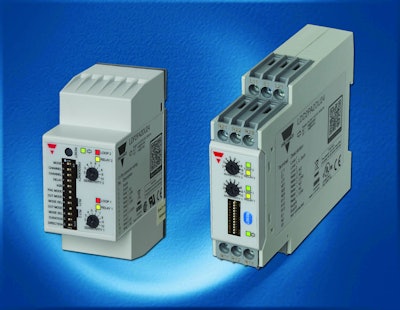

Carlo Gavazzi, a manufacturer of relays, sensors, and more, announces the launch of Loop Detectors for either single or dual loops, available in either plug-in or DIN rail mount housings. Loop detectors are designed to be used to control the operation of parking barrier gates based on the inductance of the loop under the pavement. They are also meant to be used in activation of retractable bollards (short vertical posts), ticketing machine systems, and occupancy counting.
Loop detectors are installed for use in parking lots, streets, tool gantries, traffic light control, and other places. The LDD (DIN Rail) and LDP (Plug) Series with universal supply voltage and in compact size, are made to be equipped with features that meet the needs for reliable vehicle detection.
The LDD and LDP loop detectors are equipped with automatic loop frequency tuning and sensitivity tuning for easier installation. Automatic sensitivity boost (ASB) is meant to ensure a reliable detection of high bed vehicles such as trucks or busses. Other features include:
-
DIN rail and Plug in types
-
20µH to 1000µH loop input inductance
-
Multicolor diagnostics LEDs
-
Fail safe and fail secure functions
-
2 x SPDT relay outputs
-
Selectable output operation (pulse or presence)
-
Power supply range 24-240 VAC/DC
-
Sensitivity adjustment (0.01% to 1%)
-
Automatic or manual loop frequency tuning
-
Loop diagnostics capabilities to detect loop short/open circuit, inductance out of range, and channel cross talk
The typical applications for loop detectors can usually be found in traffic management, parking management, security gates, drive-through restaurants, security bollards, etc.
