Today's demanding industrial applications require compact, robust connectors that can reliably transmit high currents and voltages. binder, a provider of circular connectors, now offers the perfect solution: special flange components act as plug-in partners for the PBC15 cable connector. This combination enables tailored solutions for a wide range of applications, such as in-drive technology.
The PBC15 connector system is ideal for transmitting high currents and voltages in tight spaces. Philipp Zuber, product manager at binder, explains: "The system is particularly suitable for applications where power and signals need to be transmitted via a cable. With the option for shielding, the connector is also optimal for applications with high demands on signal integrity or where electromagnetic transmission is required."
The connector proves itself in the industry by supplying three-phase and asynchronous motors and frequency inverters. Due to its properties, it can be used in drive technology, automation technology, intralogistics, and mechanical engineering—for example, in fans, pumps, and packaging machines.
The new flange components create seamless connections for secure power and signal transmission, further enhancing the PBC15 system's advantages.

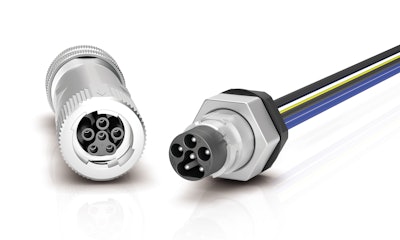

The flange components are available as flange plugs and sockets (with locking mechanism), each in unshielded plastic or shielded versions with metal components. They offer standard wire cross-sections of 1.5 mm² and 2.5 mm² with wire lengths of 250 mm, enabling current transmission of up to 16 A at 630 V. The PBC15 flange components feature an M20x1.5 mounting thread, which can be directly mounted in the customer-specific housing, device, or motor housing using a locknut. A quick locking mechanism can be achieved with a ¼ turn.
The standardized flange components are cross-manufacturer compatible according to DIN EN IEC 61076-2-116, offering maximum flexibility.
