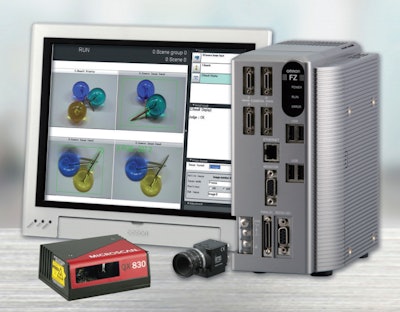

Vision Inspection Maximizes Label Accuracy

To support this need, Omron developed a custom control solution known as the SKU Verification System. This production assembly verification system can be integrated into a number of points on a customer’s packaging line to eliminate mismatches between the actual product and its packaging description. It improves efficiency by detecting incorrect raw material and illegible SKU codes before products are packaged and shipped to retail stores. Specifically, the system ensures that the proper containers, labels, and cases are matched to one another at all stages of the packaging process, including fillers, labelers, date code markers, cappers, and sealers, banders, wrappers and case packers. By installing the SKU Verification System, manufacturers can minimize wasted time and manpower that would otherwise be required to find and remove faulty products after they have been packaged. The solution also keeps downtime and production costs to a minimum, while the reduction in packaging errors improves product quality and helps keep consumer confidence high.

Integrated vision
But this alone wasn’t sufficient for the manufacturer. While the SKU Verification System would compare the SKU barcode on the label with the product being run, the process was open to operator errors when identifying the actual contents. Omron’s SKU Verification System by itself would not reliably verify that the label and contents of the canned products were the same.

So, an integrated vision system was added to the SKU Verification System solution to accurately and swiftly identify the contents of each canned product and minimize packaging errors. Omron’s solution improved overall product quality and production efficiency. The manufacturer can now make sure that the correct product is being run and the correct roll of labels is loaded on the labeling machine. This dramatically lowered production costs and increased overall profitability.

The technology
The SKU Verification System employs an Omron PLC to communicate with a barcode reader that scans the SKU barcode on each product label. The SKU data is compared against the library of data loaded in the PLC, and the system will stop the process and alert the operator if it detects a mismatch. A touchscreen interface unit (HMI) allows the operator to select the appropriate product being run, and the system provides the flexibility to add to or modify the SKU data list maintained in the controller. To address the concerns regarding the identification of canned products, Omron added an integrated vision system to read the three-character codes printed on the top of each can using optical character verification (OCV) to verify their correctness. This feature links the SKU barcode data with that of the product being run and verifies that the proper pallet of cans is loaded onto the line. The upgraded SKU Verification System also ensures that the correct label roll has been loaded.

The implementation of Omron’s SKU Verification System with integrated vision and OCV has provided clear benefits for the customer. By integrating the operator’s product selection and changeover process with the system, the manufacturer can now make sure that the correct product is being run, the correct product is loaded onto the line, and the correct roll of labels is loaded on the labeling machine. The solution lowers total production cost while increasing profitability in addition to enhancing consumer satisfaction and protecting the company’s brand reputation. -PW
