Power Supplies

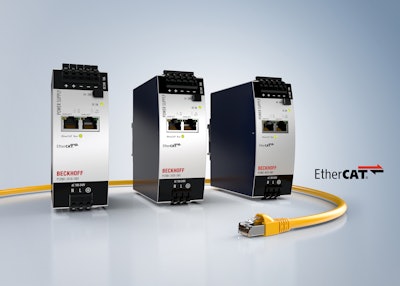

Beckhoff EtherCAT-enabled PS2000 power supplies provide transparent mains and system monitoring for wide-ranging applications

Beckhoff Ps2000 Ether Cat

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

Featuring a built-in EtherCAT interface, Beckhoff PS2000 power supplies can remotely collect additional measurement and device diagnostics for comprehensive system monitoring, which can increase availability and reduce downtime. As a result, the power supplies combine compact design and high performance with predictive maintenance functionality.

The PS2000 variants combine high-performance power supply units from Beckhoff with the ultra-fast EtherCAT communication standard. This allows the control system to directly process extensive measurement data and internal device diagnostics information and establish remote access to power supplies. It also provides advanced monitoring features for the DC output (for system monitoring) or the AC input (for source monitoring).

In the case of system monitoring, operation parameters, such as output current and voltage, are transmitted in real time and continuously updated. This enables transparent data exchange and, subsequently, automatic detection of additional load in the system. Furthermore, voltage, current and temperature data can be added to the monitoring scope, for example, to monitor heat generation in the device and collect basic plant data, such as the number of switch-on operations or operating hours. By monitoring the single-phase input voltage, fluctuations, such as under- and over-voltages, are detected. Another special feature is the detection of high-voltage spikes in the power source.

Status information, error messages, and warnings are also available directly in the control platform via EtherCAT, providing the best possible conditions for analyzing the operating status of a plant and detecting any errors at an early stage. Warning thresholds that can be set in the control system allow users to define the signaling conditions and adapt the power supply to specific application requirements. Remote access via EtherCAT also makes it possible to specifically shut down sections of a plant in the event of machine downtime or a fault.

Beckhoff offers single-phase, 24 VDC power supplies as both 10 A and 20 A variants with an output power of 240 and 480 W, respectively. A 10 A variant with 480 W is available for the 48 VDC power supply. A state-of-the-art electronics layout achieves high efficiency of more than 96%.
