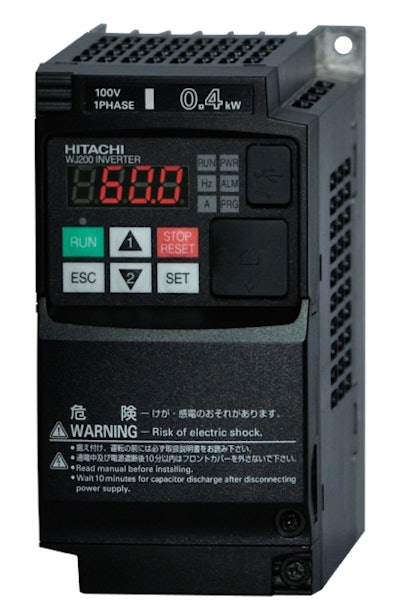

The WJ200 is a sensorless vector (SLV) drive capable of 200% or greater torque across the speed range. Speed regulation at low speed is dramatically improved: fluctuation is half that of previous models. Improved trip avoidance measures have been incorporated for system reliability and availability.
The WJ200 features integrated PLC-like functionality. With its powerful Easy Sequence (EzSQ) logic controller function, programs up to 1024 lines can be created on a PC using a structured language-editing tool. These programs can then be transferred to the WJ200 to control its operation and allow sophisticated control schemes to be created without the use of external controllers.
Simple position control applications are also possible utilizing the integrated pulse input. Together with EzSQ, intricate motion profiles can be developed. Can drive both induction motors and permanent magnet (PM) motors--a single drive for two motor realms.
A new EzCOM peer-to-peer communications function is standard and allows multiple WJ200s to share data. One drive is designated as the “administrator,” and controls the network. Other drives on the network can be master or slave, with masters able to write data to any designated slave(s). Master/slave roles are rotated under the control of the administrator automatically. Up to 8 masters can reside on the network, and up to 32 drives (up to 247 drives, if external signal repeaters are used). The administrator can be master or slave also. EzCOM allows for creation of sophisticated coordinated systems without any additional external hardware or programming.
Other desirable standard features include a safe-stop function (meets ISO/IEC standards), password protection of parameters, real-time clock, standard Modbus/RTU RS-485 serial port, micro surge voltage suppression, dynamic braking circuit, and much more. The WJ200 is designed for long service with bus capacitors and cooling fans designed for 10-year life and varnish coating of circuit boards. The WJ200 also is RoHS compliant. Option boards will be released in the near future to allow communication via Ethernet/IP, DeviceNet, CompoNet, ProfiBus, CANopen, and others.
