Variable Speed Drive Line

Since its introduction in 2019, Yaskawa’s GA800 variable speed drive has proven itself as the ultimate combination of power, ease of use, flexibility, and performance.

Designed to control traditional and emerging motor technologies, the GA800 handles applications ranging from simple fans and pumps to high-performance test dynamometers requiring precise regulation. In addition to its robust and powerful design, the GA800 provides highly flexible network communications, embedded functional safety, and easy-to-use tools featuring mobile device connectivity.

Yaskawa America is pleased to announce the following expansions to the GA800 product line:

* GA800 frame 12 standard drives - 480V, 700 to 1000 HP

* GA800 480V, 700 to 1000 HP Configured Packages - Types 1, 12, and 3R

* GA800 480V, 400 to 600 HP Configured Size Reduction

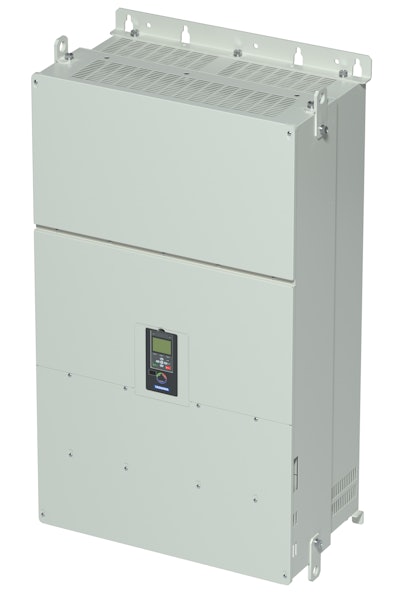

GA800 Frame 12 Standard Drives - 480V, 700 to 1000HP

Catalog Code              Normal Duty Rating           Heavy Duty Rating

GA80U4810AAM            700 HP (810 A)                    600 HP (720 A)

GA80U4930AAM            800 HP (930 A)                    700 HP (810 A)

GA80U4H11AAM            900 HP (1090 A)                  800 HP (930 A)

GA80U4H12AAM           1000 HP (1200 A)                 900 HP (1090 A)

Notable features of GA800 frame 12:

• 39% smaller in width than previous generation A1000 drive
• 34% lighter than A1000 drive
• Field configurable for 6-pulse or 12-pulse input (no special model required)
• Accepts Type 12 external heatsink kit (no special flange model required)

GA800 480V, 700 to 1000 HP Configured Packages - Types 1, 12, & 3R

Like all existing GA800 configured packages, these new high-power packages have various configuration options and offer the same power ratings as the frame 12 standard drives.

F1T (F1 Tall) EnclosureNotable features of GA800 Configured 700 to 1000 HP:

Type 1 and Type 12

• 54% smaller in width than A1000 Configured
• Semiconductor fusing as standard
• Available with or without disconnect
• SCCR up to 100kA depending on configuration

Type 3R

• 19% smaller in width than A1000 Configured
• Semiconductor fusing as standard
• Available with or without disconnect or circuit breaker
• Available with or without a reactor
• SCCR up to 100kA depending on configuration

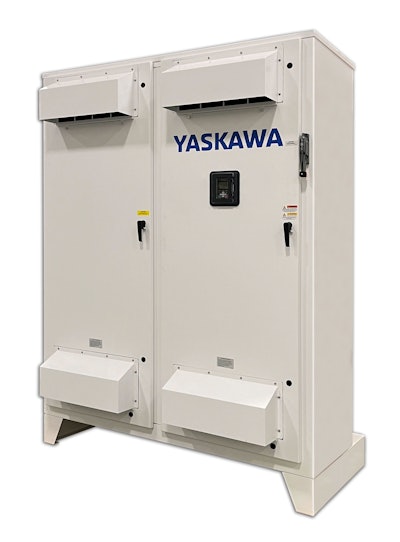

Type 3R F2 Enclosure

GA800 480V, 400 to 600 HP Configured Size Reduction

To complement the new frame 12 ratings, Yaskawa has repackaged the 400 to 600 HP Normal Duty (350 to 500 HP Heavy Duty) configured offering as follows. These ratings were previously in a 2-door floor mount and are now reduced to a single-door floor mount.
