Festo Corporation: Solenoid valves

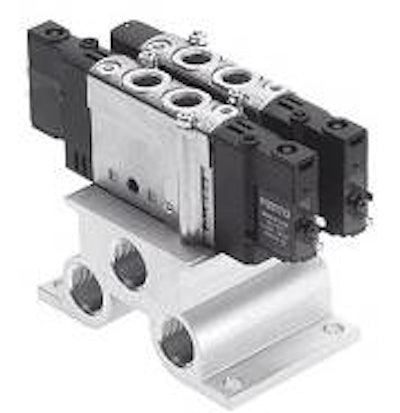

With its slim width, the CPE valve offers high flow rate. The valve’s compact size enables it to be installed directly on the cylinders or on moving parts. These valves can withstand the extreme operating conditions. The CPE solenoid valve can be used as an individual valve or can be mounted on a sturdy aluminum manifold – a convenient way to simplify an installation. Other features include: space optimization--widths of 10, 14, and 18 mm on an aluminum manifold rail, flow rates of 350, 800, and 1,500 l/min, low power consumption of 1 or 1.5 watts, wide pressure range of -9.9 … 10 bar for universal use, and switching times as low as 12 ms.
