Johnson Electric: Compact driver

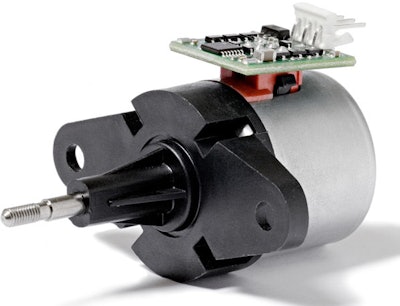

The Saia® Compact Driver from Johnson Electric is a fully integrated step driver/motor solution that reduces design and integration time and improves device performance by reducing parts count and providing greater immunity to electromagnetic interference.

Johnson_Electric
Johnson_Electric

Featuring low power consumption and a small footprint, the devices also provide 3-wire operation of 28mm Saia motors, including UCL and UCE linear step motors, and UCD and UCB rotary step motors. The linear solution can provide forces from .1 to 50N with a step resolution down to 0.021mm and distances up to 150mm. The rotary solution can be combined with a Saia UGA, UGD or UGM gearbox to obtain higher torque and RPM outputs, and increase step resolution, all from the same integrated driver board.
