XPdius Elite Vertical Bagger for Big Bag Formats

This vf/f/s takes on large-format bags at speeds up to 3,000 per hour.

Nov 12th, 2020

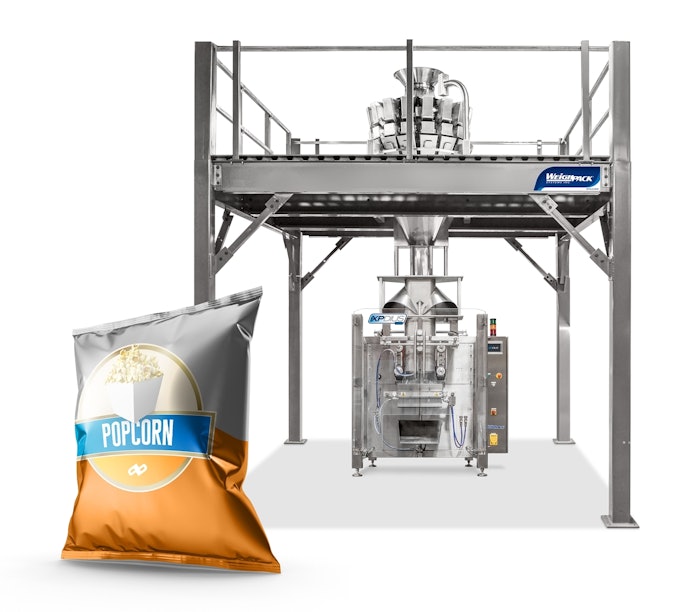

Paxiom X Pdius Elite 1700 Vertical Form Fill Seal

According to WeighPack Systems Inc., its extremely versatile XPdius™ Elite 1700 vertical bagger is able to fill bags up to 17 in. W x 24 in. L and includes film tracking, tool-less removable pull belts, forming tube, and film roll. Available options include bag gusset attachment, gas flush, hole punch, tare notch, polyethylene sealing assembly, pivoting bag support, bag tapper for product settling, and lot code printing.

Capable of producing up to 3,000 large format bags per hour, the XPdius vertical bagging machine includes twin servo motors and drives for its pull belt assembly and horizontal seal jaws. These drives assure total control over acceleration, deceleration, and positioning while ensuring high performance throughout production.

The XPdius™ vf/f/s machine can be integrated with any auxiliary weigh filling machine including Paxiom’s own PrimoCombi™ multihead weigher, Star Auger™ powder filling machine and PrimoLinear™ net weigh filling machine.

WeighPack

Paxiom Group
