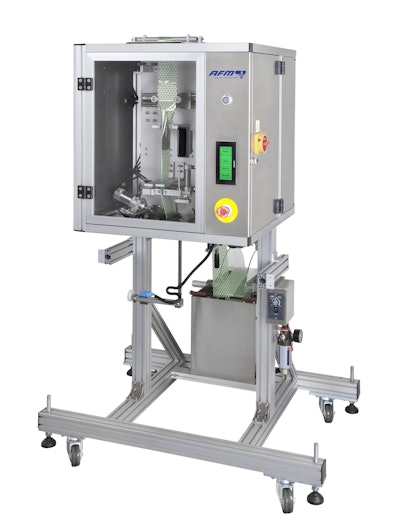

The CH-100’s simple, low-maintenance design allows for quick film change and maximum uptime. CH-100’s compact housing is constructed from 304 grade stainless steel and anodized aluminum to provide strength and reduce vibration while offering quiet operation. Product runs are programmed with the user-friendly touch-screen control interface, making setup and operation fast and easy.
CH-100 Tamper Band Applicators are stepper-motor driven, single film unwind with tension control, cutter assembly, and pneumatic cylinder to provide accurate and consistent tamper band application. The single-blade guillotine cutting mechanism provides extremely smooth, even cutting of PVC/PETG film 50 to 70 microns in thickness-
The machine features a single unwind system with tension control for proper film alignment, and a photo eye sensor system that allows for register cutting, guaranteeing accurate cutting of the film for consistent band application on the container.
The CH-100 also comes with a quick-change system for switching mandrels with the turn of a knob. Along with the mandrel, the cutter assembly has only two levers to turn, keeping downtime to a minimum.
