Robotic Precision in Small Batch Aseptic Processing

Product flexibility

The combination of modular design and advanced robotics allow the GENiSYS R to be configured to meet different process requirements and containers without the cost or extra time associated with customization. Operators can program recipes specific to container formats and drug products, as well as precise robot movements and pump settings, using the intuitive human-machine interface (HMI), ASTView. This can include fine-tuning needle fill depth and speed to prevent bubbling, or exact positioning in a given space to mitigate air disturbance, for example–with minimal downtime during changes.

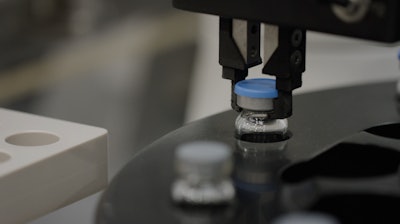

A robotic arm prepares to place a finished vial back into the nest.

The system’s modular design also provides flexibility with regard to the degree of automation desired: Bag and tub opening can be manual, semi-automated, or fully automated, while filling and vial sealing are always fully automated.

Robotics for sterility, quality, and safety

For pharmaceutical and biotech labs tasked with processing complex small batches, precision, flexibility, reliability, IPC, and protection from contamination are all critical elements. The GENiSYS R meets these requirements thanks to Stäubli’s six-axis TX2-40 and TX2-60 Stericlean robots. The robots are entrusted with a variety of delicate and repetitive yet critical tasks that could otherwise put product quality, the operator, or the end user at risk.

In addition to its past experience with Stäubli, AST had a variety of reasons for choosing Stericlean robots for the GENiSYS R. As CEO Joe Hoff explained, “We needed robots that are reliable over a long period of time, extremely precise, and completely sterile, and the Stericlean line is designed for exactly that.”

Stäubli’s Stericlean range is suitable for GMP grade A and grade B tasks, and known for high performance in aseptic and sterile conditions. Extremely low particulate generation and VHP-resistant design enable the robots to reach cleanliness level ISO 2. They feature a fully enclosed IP65 arm with IP67 wrist, as well as a smooth surface free of retention areas and coated with a high-resistance surface treatment. The arm is also equipped with specialized lip seals, and cables run through the arm and out vertically through the base. Critical parts are made of stainless steel.

A spherical work envelope and compact size make TX2 robots easier to integrate within machines like the GENiSYS R. They can work nimbly in tight workspaces, and their small footprint allows optimization of the surrounding workspace.

See it Live at PACK EXPO Connects Nov. 9-13: Labeling Cannabis Products in a Monobloc Filler, by Chase Logeman. Preview the Showroom Here.

Speed and repeatability are also important considerations. With Stäubli robots, the GENiSYS R can process up to 20 units per minute, depending on container, product, and IPC rate. Several unique attributes make this possible, even when using NSF H1 food-grade oil. Chief among them is Stäubli’s own patented gearbox, which the company manufactures in-house. This ensures minimum backlash and unmatched arm rigidity, allowing for extreme repeatability–translating to higher speed, shorter cycle time, and greater productivity.

Flexibility from opening to closing

Depending on the level of automation desired within the GENiSYS R system, the TX2-40 and TX2-60 Stericlean robots can handle or assist with critical steps in each stage of the aseptic process: bag and tub opening, filling, stoppering, sealing/closing, and reject handling. If some tasks along the production line need to be manual, the GENiSYS R can easily accommodate that need while ensuring operator safety and product sterility.

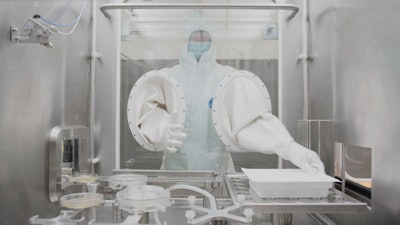

An operator manually transfers containers into a tub opening module–a task which can optionally be semi- or fully automated.

The robots offer reliable repeatability in their motions as they carefully manipulate the nest and vials, which is essential to reducing particle generation, air disturbance, unexpected vial shaking, and other potentially damaging variables. This helps prevent spills and other incidents that would otherwise result in unplanned manual interventions, which risks compromising the aseptic environment.

The use of the Stäubli robots engineered for dexterity and use in aseptic environments play a significant role in the GENiSYS R’s high flexibility, enabling the precise filling and closing of ready-to-use nested, pre-sterilized vials, syringes and cartridges. Without these advanced robotic capabilities, the changes between recipes and formats demanded in small batch processing would be impossible or prohibitively complex.
