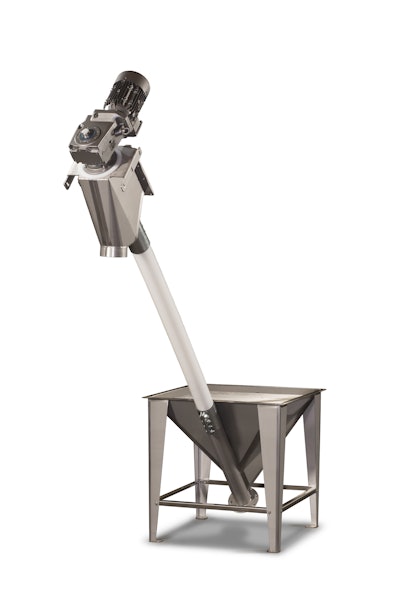

NBE flexible screw conveyor gear drives and motors are specified to ensure optimal output torque and motor horsepower; this combination brings maximum power and conveying efficiency to the application. The conveyor discharge head is 12 gauge 304 stainless steel, formed and welded with continuous-weld seams that are ground to a No. 4 finish and hand-burnished to eliminate the gaps, joints, bolts, and resulting material accumulation common with the bolt-together, sheet metal construction of commodity products.
NBE flexible screw materials of construction and application-specific flight designs enable sustained conveying, at designed capacities, of even the most rugged materials and rigorous bulk densities. Screw flight designs include: 3/8-in. thick, wide-face flat or beveled flights; 3/4-in. diameter round-bar flights; or 1/2-in. square-bar flights all available in multiple OD, ID, and pitch combinations.
