The variety of conveying surfaces available fromSystem Plast creates new options for every material handling need from single bottles to cases, people and even cars.
System Plast engineers a wide variety of conveyor belt and chain for low-maintenance, high-efficiency performance, utilizing proprietary polymer formulations to suit application requirements. Demonstrating its flexibility at Promat, Regal will demonstrate its directionally unlimited roller top belt that can align products to any angle, divert them, sort to multiple lanes, rotate, combine, or gap them– all done softly without contact.

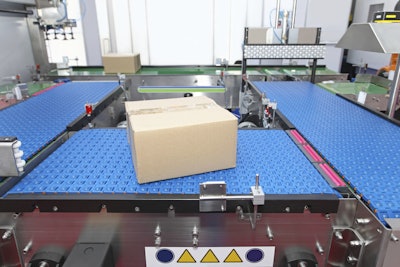

System Plast 2253RT roller top belt simplifies conveyor design and installation with its independently controlled moving surface that easily handles large or small, flat-bottom products, moving them on half-in. (12.5 mm) balls spaced on one in. (25.4 mm) centers. It supports loads up to 617 lb/ft (9,000 Nm/m) or 1.1lb/ball (0.5 kg/ball). The belt's noncontact product manipulation eliminates impact and abrasion damage from pushers, as well as the need for mechanical adjustment or changeovers for conventional diverters or guides.
System Plast heavy duty and extra heavy duty plastic belts provide a non-skid, energy efficient conveyor surface for general material handling of heavy loads, such as barrels, drums, kegs and pallets. The belts handle loads up to 5,400 lb/ft and 7,800 lb/ft (80 kN/m and115 kN/m) respectively. Both styles are ideal for moving assembly line floors where the belt's non-skid, solid surface protects against slips and prevent stools and small parts from being trapped.
