Key Technology: Key Technology introduces SmartArm™ for Iso-Flo® Vibratory Conveyors

SmartArm™ is a new wireless performance monitoring system for Iso-Flo® vibratory conveyors that enables users to monitor asset or equipment shaker condition at any computer workstation.

Key_Technology
Key_Technology

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

The system measures and reports speed and stroke to provide real-time analysis of shaker function, line-flow conditions, and trends at-a-glance. The SmartArm client also shows an alert when speed or stroke are out of tolerance. Empowering the shift from traditional time-based preventive maintenance to condition-based predictive maintenance, SmartArm not only prevents downtime and reduces labor, it also provides the opportunity to improve process efficiencies.

Available worldwide as an option on new Iso-Flo vibratory conveyors and as an upgrade for the installed base of Iso-Flo shakers with StrongArm and older spring arms, the SmartArm system includes a self-powered wireless SmartArm sensor, a remote base station, and licensed software. This monitoring system can be linked to the customer’s plant-wide network to deliver line performance data and alerts to remote users.

Monitoring and reporting speed and stroke, SmartArm provides an early warning for maintenance personnel to take action and prevent unplanned downtime, extend the life of the equipment, and reduce consumable spare parts costs. By automatically collecting data in a central location for analysis, SmartArm reduces the need for maintenance walk-throughs while alerting operators to make adjustments and perform maintenance when needed, which reduces maintenance-related labor costs. Trending data that analyzes real-time line-flow conditions, as well as shaker performance, supports process improvement decisions that can optimize equipment performance and increase production line efficiencies throughout the plant.

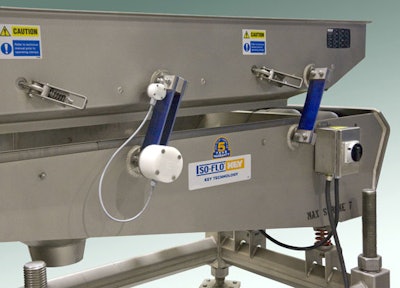

The CE-marked SmartArm sensor, which is mounted to the Iso-Flo’s existing spring arm bracket, operates in environments from -20º C to 70º C (-4º F to 156º F) and meets NEMA 4X washdown standards. The sensor measures acceleration and reports speed and stroke every 15 minutes, wirelessly transmitting this data to the base station. The base station, with its small footprint of 7 by 11.4 cm (2.75 by 4.5 inches), is installed within 90 m (300 feet) of each sensor in a non-washdown location with an Ethernet connection to the plant network. The licensed software is installed on a network server to support an unlimited number of base stations and provide access to the data from an unlimited number of client-computers including remote access via VPN (virtual private network).

This system is easy to install and operate. All firmware on the sensor and base station is programmed prior to shipment from Key Technology. Sensors are shipped to the customer in transmitting mode. The base station begins receiving and sending data as soon as it is connected to power and the network. Data is analyzed against the design speed and stroke of each specific Iso-Flo shaker to present real-time and trending data as well as alerts for out-of-specification performance. The data can also be sent to the plant SCADA or HMI system via the OPC XML-DA communication protocol.

Based on the reduction of planned and unplanned downtime, maintenance labor, and improvements in production line efficiencies, SmartArm typically achieves a payback in less than one year.
