Flush Grid Belt Conveyor Belt Solution Replaces Wire Mesh

Multi-Conveyor built a high-level hygienic 48 in. wide, flush grid and side flexing plastic conveyor belt solution to replace an existing wire belt system, satisfying its customer’s need for a more sanitary constructed conveyor in the process.

Cip Sanitary Flush Grid Replaces Wire Mesh By Multi Conveyor High Res

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

Product discharges in multiple lanes from the customer oven to the Multi-Conveyor infeed. Rows uniformly convey through a slight incline then end transfer to a side-flexing 35° curve which maintains orientation required for accurate spacing and placement for the freezer infeed ahead. The upgraded belting provides a much smoother transition in product transfer areas.

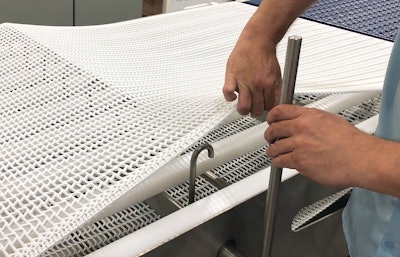

Integrated belt-lifts were requested for ease of cleaning and maintenance. Chris Jeszke, Project Manager, explains … “The integrated belt lift allows customers to access and clean underneath the chain without having to remove the chain.” The manually operated belt lifts were strategically placed.

Clean out holes or ports are also incorporated in specific locations to allow the operator visual assistance in the belt cleaning process. These viewing areas are common in hygienic constructed conveyor systems.

Clean-in-place (or CIP) systems typically include other sanitary features, as Chris continues … “And for our chain clean-in-place, we offer a drain pan that has a threaded fitting that can be attached to the drain so that no water or anything contaminates the floor or area around the conveyor.” The drain pans span the entire width of the conveyor in several locations, along with respective CIP fittings.

Removable wear strips were key to this project. Yet, they had to be secured during operation. Chris demonstrates Multi-Conveyor’s simplistic solution … “In order to retain the upper wear strips, we have pins to secure them in place. They’re easily removable and captured,” Chris finishes.  Just like the other features, the removable wear strip pins were specifically placed for optimum accessibility.

The portable stainless steel constructed system met or exceeded all sanitation construction levels for the customer’s regulated agency compliance mandates.

Watch this brief video with narration for further information.
