Applied Motion Products: Digital servo drives

Applied Motion Products introduces the SV200 digital servo drives for DC-powered motion control applications. Operating on 24, 48, or higher DC voltages (up to 60 vDC), drives offer advanced performance with multiple controls to address the requirements of machine builders and OEMs, especially for multi-axis applications.

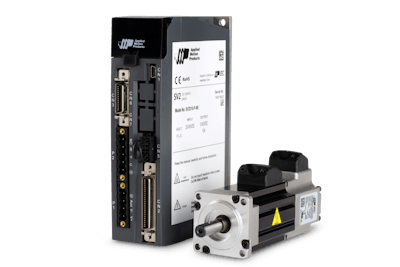

SV200 digital servo drive
SV200 digital servo drive

Removing requirements for power conversion components, these DC-powered drives reduce costs by allowing multiple servo axes to draw power from a single DC power source. Smaller in size than comparable AC-operated drives, the SV200 Servo Drives require less space in a control cabinet and fit in space-constrained applications such as automated guided vehicles and other small machines.

Applied Motion’s fully digital servo drives also feature:

• Auto-tuning, anti-vibration function and programmable notch filter for smooth motion and accurate positioning

• 10 Amps continuous, 20 Amps peak output current

• Supply voltages from 24 to 60 vDC

• Various control modes including step (pulse) & direction, analog torque/velocity/positioning, encoder following, streaming commands, stand-alone operation (indexing) with Q Programmer™ software, EtherNet/IP, Modbus TCP or RTU, and CANopen

• 8 regular digital inputs: 5 – 24 vDC; 4 high-speed digital inputs: 5- 24 vDC and 6 digital inputs: 30 vDC

• Safe Torque Off input

• Dual-port communications for daisy chaining drives together (line or ring networks

Applied Motion’s new DC powered drives are optimized for use with their high torque J Series Servo Motors in the 200W, 400W, and 750W power range.
