Multi-Conveyor Settling Conveyors Offer Optimum Case Packing

Achieve consistently level case for sealing purposes

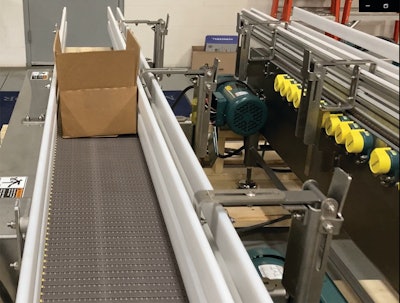

Multi Conveyor High Res

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

Multi-Conveyor settling (or vibrating) conveyors facilitate product settling of filled, open-flap corrugated cases. Single-lane product ends transfer on and off again in various sections of an existing line.

Tim Bori, project manager at Multi-Conveyor, says, “We built a series of basic settling conveyors to vibrate small, sealed cups of a granulated dry beverage for optimum case packing.”

Each independent section is comprised of nearly 8-ft. x 12-in. straight-running plastic modular belting. The product settling process is actually achieved below the belting.

Bori continues, “The settling process is achieved by using a series of square shafts that are strategically placed in an offset position underneath the flat top belting, which causes the motion required for the settling process.”

The mild-steel, bolted construction, open-frame design utilizes both fixed and adjustable stainless-steel flat bar guide rail brackets for double-high extruded-aluminum (w/UHMW cover) guide rails. Stationary H-style tubular support weldment with adjustable articulating feet and a single bolt mounting tab for floor anchors stabilize each conveyor section during the product settling process.

Bori concludes, “Settling conveyors are commonly requested to achieve a consistently level case for sealing purposes.”


Fill out the form below to request more information about Multi-Conveyor Settling Conveyors Offer Optimum Case Packing
