The compact single-box design is engineered for fast installation, quick starts, simple operation, and fast line changes to assure high versatility and uptime.

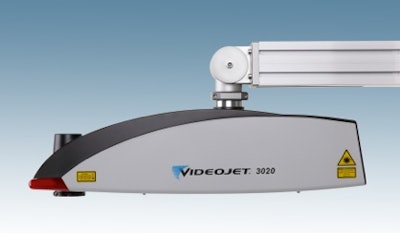

The Videojet 3020 weighs just 7 kg (15.4 lbs.). The compact single-box design allows for installations even when space is at a premium. The 3020 can be integrated either as a stand-alone solution using the easily adjustable mobile stand or directly into the line with mounting brackets. The unique and flexible laser mounting provides a variety of mark positions.
The quick-starting Videojet 3020 averages just 30 minutes for mechanical setup and 20 minutes for line changes. Smart system features like a focus finder and automatic signal detection of the encoder and product detector help reduce installation time. An intuitive user interface on a touch-screen tablet includes a setup wizard to set up the laser on the production line. Its simple menu structure and preview window allow the creation of jobs and setting of print parameters in a matter of minutes.
Depending on the lens used, the Videojet 3020 laser coder offers mark field sizes up to 126 x 87 mm (5² x 3.4²) to enable a wide range of codes and applications. With scribing technology, the 3020 provides clear, high-quality marks on both stationary and moving products. Marking formats include alpha numeric text, simplified Chinese fonts, Eastern and Western European language fonts, variable data (serial numbers, date, time, shift code, GS1), ID matrix and bar codes, logos, symbols and graphical elements.
The standard configuration consists of the vector scanning laser marker, a lens, mechanical focus finder, product detector, and the touch-control unit. A mobile floor stand, beam shields, exhaust units, encoder, mounting brackets and additional fonts are optionally available. The Videojet 3020 laser coder and its user interface are configurable in 19 languages.
