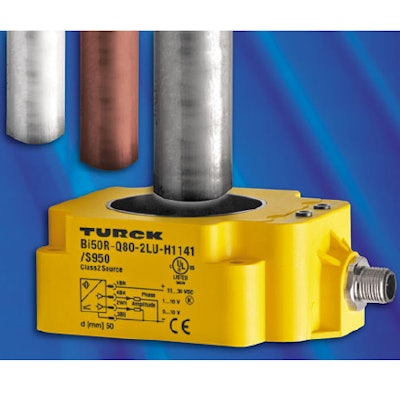

Available in ring and flat housings, these material detection sensors provide sensing ranges up to 11 mm and are suitable for stamping, die cutting and metal sorting applications, where different metal types must be readily and accurately detected. The analog+ material detection sensors use inductive coils whose RF fields are influenced differently for each metal type. The signal difference is then converted into a 0 to 10 VDC analog signal to signify which type of metal is being detected. A wide operating temperature rating of -10 to 70°C makes sensors useful in cold pilger rolling mills used for drawing seamless pipes.
