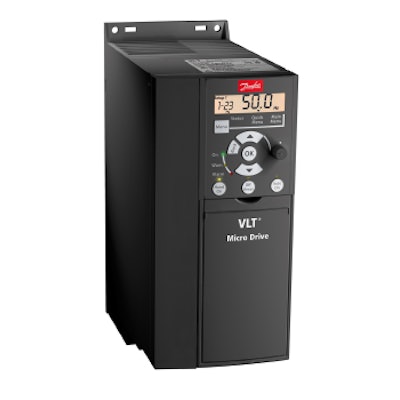

VLT® Micro Drives come in an M4 frame size covering the three-phase 380
– 480 VAC, 15 – 20 HP range. The M4 is 250mm tall (292mm with flange)
x 125mm wide x 241mm deep. Features conformal coated PCBs per IEC
60721-3-3, class 3C3, and provide serial communication via RS 485
Modbus RTU and FC protocols. A detachable Local Control Panel (LCP)
with or without a potentiometer, an LCP copy function, as well as a
panel-front mounting kit for the LCP, all facilitate ease of use. In
addition to the new frame size, VLT Micro Drives are also available in
single-phase 200 – 240 VAC, 0.25 – 2 HP; three-phase 200 – 240 VAC, _ –
2 HP; and three-phase 380 – 480 VAC, 0.5 – 3 HP power range
configurations.
