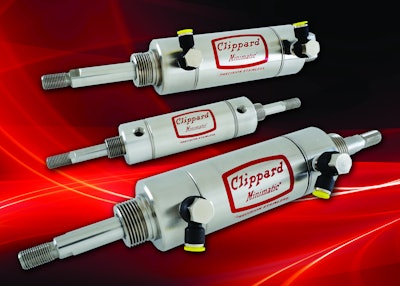

The cylinders are available with bore sizes from ¾- to 2-in. Standard stroke lengths are from 1- up to 32-in. on some models.
Additional features include: 303 stainless steel heads; FDA compliant Rulon rod bushing; FDA compliant Rulon clevis bushing on all universal mount cylinders; interchangeable with other common brands of round body cylinders; FDA compliant grease lubrication standard; wipers standar; all stainless steel air volume tanks available; temperature range: -20 to 230°F (FKM: -20 to 400°F); maximum pressure: 250 psig.
Also featured: polished I.D. 304 stainless steel tubesfor low breakaway; precision rolled construction for a solid,leakproof cylinder at a reasonable price; cylinder heads are machined from one sidefor better concentricity; rods are threaded, bonded, and orbit formedto pistons; ground, polished and roller burnished303 stainless rods provide a smoother rod finishthat protects rod seals, providing longer life; full piston area breakaway to assure full powerfrom the beginning of each stroke;Nitrile "U"-cup piston seals for full power,low friction and trouble-free performance; andNitrile "U"-cup rod seals for leakproof operation.
Click here for more information: http://www.clippard.com/link/pwld1567560
