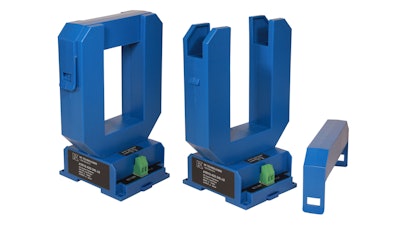

With the AT/ATR-LS simply install the top portion of the sensing ring, place the conductors inside and snap the top back in place. The base can be snapped onto a DIN rail or attached to the control panel with screws. Either method provides a solid and secure way to measure the current use of the load. The transducer can also be simply suspended from the conductors if needed.
The AT/ATR-LS Current Transducer is designed for monitoring large machines as it measures the current use to detect over or under current conditions. For water delivery and treatment, the AT/ATR-LS detects open discharge lines and can see clogged filters or blocked pump intakes. In generators, it keeps the power system running by monitoring output, and can be used to signal over loaded conditions.
The new AT/ATR-LS Current Transducer features industry standard output, loop-power, factory calibration, a split-core case and DIN rail mount. The transducer uses two wires to connect to the power supply and the load: programmable logic controller, panel meter or data acquistion system. Designed to meet UL, CUL, and CE requirements, the AT/ATR-LS can be used worldwide.
NK Technologies offers no-cost test and evaluation units to qualifying OEMs.
