New Equipment at Mother Earth Brewing Adds Flexibility

“We do a lot of stuff in 24-pack trays,” says Chris Baker, director of brewing operations. “But we were also trying to touch on that carton side of the business. We wanted something that would do both because, individually, the two machines are expensive. So, getting something that was a good bridge between them was what we were looking for, and the Spartan really covered that.”

 Not only was the company packaging both 12-pack cartons and 24-pack trays for its different beers, but some brands added in the complexity of having both 12- and 16-oz cans. This necessitated a cartoner that allowed them to changeover often with ease. Now, they can change the Econocorp cartoner over in less than 20 minutes, which doesn’t negatively impact production goals.

“We're kind of all over the place, so packaging needs to be pretty nimble so that we can get onto one brand and knock out four different formats and then get into another brand,” Baker says.

Keeping up with demand

It was also important to find a cartoner that could keep up with their canning line capabilities but also adapt to a larger and faster operation as the company grows.

Listen to this podcast on how to bridge the skills gap through partnerships

“We want to look at 200 to 250 cans/min. next, and this machine can keep up with it,” Baker says. “At our size, that's a tough machine to find, because the reality was everyone else wanted to sell us something that would either work for the next six months or be so expensive and so over-the-top that it would be overkill for the next year or whatever it takes us to get into a bigger line. This is something we can grow into and expand upon pretty easily.”

The cans run through two separate Wild Goose WGC 250 canning lines, where cans are rinsed and sanitized by two twist rinsers, filled, and seamed.

How the line works together

The Econocorp cartoner is the latest addition to Mother Earth Brewing’s filling and packaging line, but there is a lot more going on upstream keeping the company at its target of 80 cans/min.

The company runs two separate lines, starting with a Ska Can-I-Bus depalletizer, to which the company upgraded in 2020. The cans run through two separate Wild Goose WGC 250 canning lines, where cans are rinsed and sanitized by two twist rinsers, filled, and seamed. Mother Earth has been running its Wild Goose lines for the past six years.

“There are an infinite number of adjustments and ability to adjust things,” Baker says. “If I run a milk stout, I can slow my belts down to give it time to foam out how I want. It's more versatile. While I can't run super high carbonation levels, I can run nitro beers. We run everything through that.”

Custom conveyance brings the two lines together to apply date-codes using Domino A320i ink jet printers through a Heuft Basic low fill/low pressure detector, a Chart Industries nitrogen doser, an Anton Paar CBox, and a Zahm piercing unit to check dissolved oxygen levels.

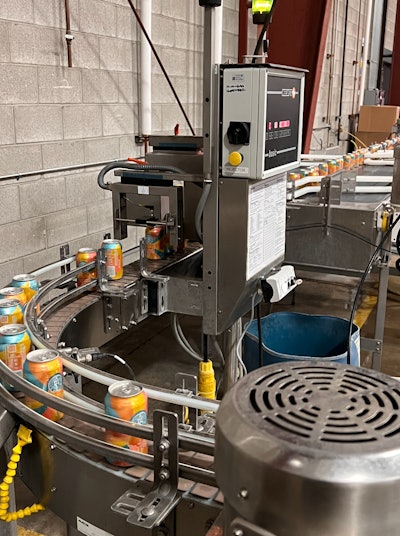

Custom conveyance brings the two Wild Goose lines together and sends cans through a Heuft Basic low fill/low pressure detector.

“Along with the Anton Paar CBox, we do have a very extensive laboratory, and a lot of breweries our size don’t have that,” Daniel Love says. “We do pull off a number of cans in line at the beginning, the middle, and the end and we store them warm, cold, and hot. We taste those about every other Friday with our brewers, so we have an extensive ability to react to somebody if they get a beer and they light us up on Facebook or send us an email. We know before we put something in the can that the product is going to be exactly what it needs to be and there aren’t going to be any inconsistencies in it.”

Keeping the line moving

After the cans run through inspection, they are fed onto an accumulation table, which allows the company to keep fillers running if equipment backs up or slows downstream.

“We try to think the setup through so that we could add in bigger pieces without having to change everything,” Baker says.

For higher volume beers like the Cali Creamin’, Mother Earth uses printed cans, which run straight into a PakTech can carrier applicator 120/180 from the accumulation table. The applicator can be configured for a six-pack or four-pack.

For lower volume beers that may not meet supplier minimum order quantities (MOQ) like Project X, which is a year-round rotating beer that has new labels and new artwork all the time, Mother Earth can side-stream these cans to a Pack Leader PL-501 can labeler, which applies pressure sensitive labels from local Boise-based label maker Action Quality Printers.

From there, a long infeed conveyor brings cans to the Econocorp cartoner.

“We set it up so that we could put some tables on it and make that feed pretty easily.” Baker says, “We set these tables along the side, and then we just push these on with these lanes and we now have the ability to either do six varieties, four cans of each. We could do two varieties, with 12 each, or we could do two varieties, six each, and a 12-pack. We can do literally anything we want.”

Watch this video report on innovative new marking, coding, and digital machinery found at PACK EXPO Las Vegas

Then, a four-foot conveyor leads cans to another Domino A320i date-coder to code the outside of the cartons.

“Some brands are still missing on that front and it's really frustrating to buy a 12-pack of an IPA, you're really excited, take it home, and realize it's really old,” Baker says. “So, we code the outside of those.”

A gravity feed conveyor takes the cans to a stop point where three to four people hand-stack cases onto a pallet in preparation for the company’s pallet wrapper.

What’s next for Mother Earth

As the company continues to scale, Daniel Love and Baker are building flexibility into their operations and line so that when the time comes, they can ramp up to 200 to 250 cans per minute. But they are also keeping an eye on quality. Along with its extensive testing, the company has also developed an internal shelf life assessment called 30, 60, 90 where they test the beers 30 days after packaging, 60 days after packaging, and 90 days after packaging, as well as under different conditions.

“Knowing what's going on with your product as it goes through its life cycle is important,” Baker says. “Now, if somebody brought us a beer and they're like, ‘What's wrong with this?’ I could tell you just from the taste how old it is, how many days it's been warm, and how it's been stored. The reality of it is once the beer leaves your facility, you really don't know what happens to it.”

Mother Earth’s lifecycle analysis, which provides valuable insights on beer quality even after it leaves the brewery, helps identify and account for distribution issues that could negatively impact a beer that left the facility fresh and delicious. These steps improve insight into the whole operation, including the craft beer packaging line, and inform the company on how to keep quality as high as its fans expect.
