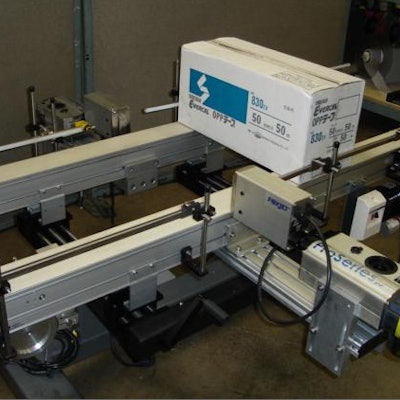

ID Technology: Centerline conveyor for inkjet printing systems

The new system moves printheads and guide rails in and out with one crank adjustment handle, significantly reducing changeover time between carton sizes. The conveyor system handles carton widths from 10.5 in. – 25.5 in. and can be used with Hi-Resolution Inkjet, DOD Valvejet or Continuous Inkjet Printers. Split guide rails and printhead mounting allows printing at the bottom of the cartons. Standard conveyor speed is fixed at 65 feet per minute, with other speeds available and the option of variable speed. Overall conveyor length is 6 feet by 46 in. (cranked in) or 61 in. (cranked out) wide.
