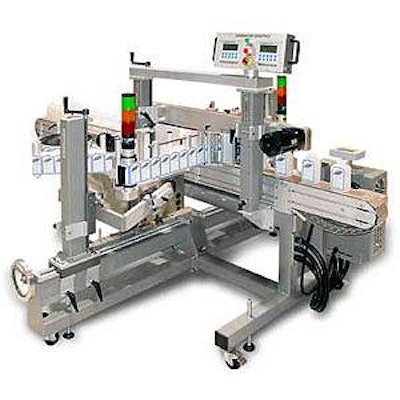

The Inline Series 6000's optional features allows you to easily build a system to meet your specific labeling requirements. The versatile Inline 6000 is an open frame labeling system that can be outfitted with Label-Aire's full range of Label-Aire New Generation 3100 Series applicators (wipe-on, air-blow, or tamp-blow) and features a delrin chain conveyor in lengths of 6 feet to 12 feet (1꼝 mm to 3깲 mm) with a choice of 4.5 inch (114 mm) or 6.0 inch (152 mm) conveyor widths.
The 6000's options include extruded aluminum or stainless steel side plates, speeds up to 1겨 inches (3감 cm) per minute with the optional Variable Frequency Drive (VFD), user-friendly digital/PLC controls, top trap hold down, single or dual feedscrews with soft start, powered or non-powered impressors for secondary wipe down, metering wheel to aid in product separation, Automatic Speed Following (ASF) for product surface profiling, chain aligner, squeegee wipe-downs, and wrap belt.
Specs
Dimensions: Height: 63.9” (1깏 mm), Length: 120” (3감 mm), Width: 84.8” (2걺 mm)
Weight: Approx. 1ꯠ lbs. (454 kg)
Electrical: 120 Volts AC 60 Hz 20 Amps., 220 Volts AC 50 Hz optional (CE)
Air (as needed): 4 cfm at 90 psi to 100 psi required for air-blow and tamp-blow applications
