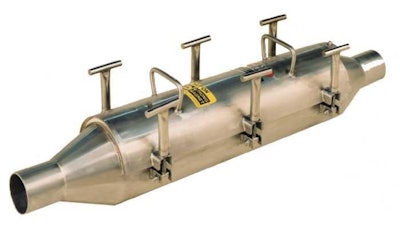

Puritan Magnetic's Air-Vey Magnets are designed to remove ferrous metal contaminants from products in dilute phase pneumatic conveying systems operating at 15 psi or less. These units are used to ensure product purity and protect process equipment. The flowthrough area of the housing is engineered to maintain the same product velocity with no appreciable drop in pressure.
Air-Vey Magnets install easily in horizontal, vertical, or angled positions with compression type couplings or weld in place.
Inside the stainless-steel housing is a powerful magnet. As material enters the housing, the material passes through the magnetic field and ferrous contaminants are drawn to the magnetic surface. Ferrous contaminants are safely held in place as the cleaned product exits out the opposite end of the housing.
These are available in an E-Z Clean or a Plate Style design depending on the application and customer preference.
