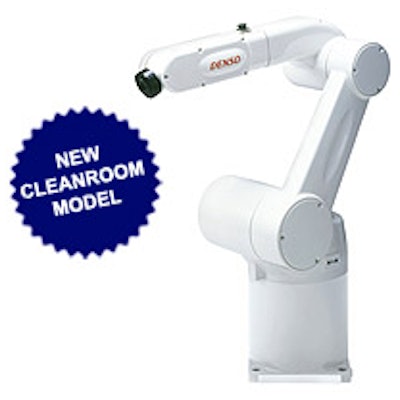

Robots feature reaches from 1,000 to 1,300 mm and standard cycle times
of 0.89 to 0.95 sec, along with repeatability from ±0.050 to ±0.070 mm
and a payload capacity of 10 kg. Designed for medical, pharmaceutical
and electronics markets as well as dispensing, inspection, material
handling and packaging, the long, slim arms of the VM-Series robots
allow them to reach easily around tooling or peripheral equipment, and
into deep, narrow spaces such as plastic injection molds, extending
their application range. In addition, their high maximum allowable
moment of inertia (0.36 kgm_ at J4 and J5 and 0.064 kgm_ at J6), which
is 2.5 times greater than conventional robots, allows a wider choice of
end-effectors. Both floor- and overhead-mount models are available.
