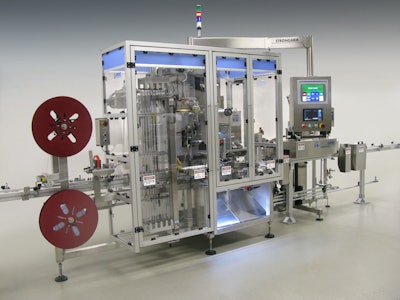

The 90-Series was engineered for continuous, higher speed production lines: 200 to over 400 cpm, depending on sleeve height and diameter. The new 90-E TSCB model features special product handling; a timing screw transfers small bottles into a cleated belt. This provides stability during neck band application and pre-shrinking in position, for consistent band placement and functionality.
The 90-Series uses 3 important technologies, all exclusive to PDC.
First, a “Zero Downtime” Automatic Reel Changeover feature allows an operator to load a second reel of material without stopping (or slowing) production. The system detects when the initial reel is expended and automatically engages the new reel.
Second, PDC’s patented Tetrahedron Wedge technology positively delivers sleeving film through the feeding, cutting and application process, performing at the extremely high operating efficiencies demanded by the pharmaceutical and food industries.
Third, 90-Series Shrinksealers use PDC’s patented blade assemblies. Manufactured from severe-service tool steels with superior hardness and edge profile, they operate
dust-free, prevent the “hairs” that are often problematical for users of spinning knife devices, and have a service life that is measured in months, rather than shifts. Also, unlike spinning knives, PDC blades can be re-sharpened, and most are double-edged. Double-edged blades are reversible, so a single set provides double the value, and both edges can be repeatedly re-sharpened.
PDC blade assemblies deliver extraordinary longevity and performance, and are compatible with all major sleeving and labeling films, including thin gauge material (30 to 50 micron, depending on speed, cap configuration and material characteristics.)
Other elite features of the new 90-Series include full safety enclosure, heavy duty construction, Allen-Bradley PLC control, a Touch Screen HMI, keyed run/jog switch and upstream photo-eyes. Systems can be configured with vision systems, barcode scanners, vertical and horizontal perforators, imprinters, motorized height adjustment, shrink tunnels and conveyors.
Like all PDC packaging systems, 90-Series Shrinksealers use highest quality, standard components, assuring that the cost of system ownership remains low throughout its long service life. Electrical panels can be UL certified.
