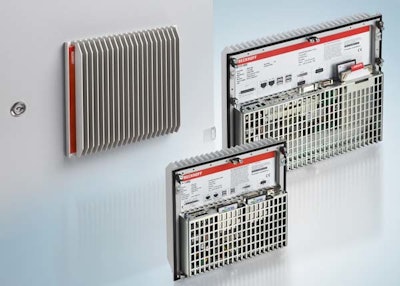

With TwinCAT® automation software and high performance processors up to
Intel Core™2 Duo 2.16 GHz, the C65xx IPC series becomes a powerful “all-in-one”
PLC and motion control system. By integrating this IPC into an existing
control cabinet housing, the C65xx series permits flexible push-button
configurations and extension options within control enclosures. The
IPCs within the C65xx series feature an integrated heat sink for
external cooling that reaches ambient temperatures through a suitable
cut-out in the panel of the control cabinet. Integrated seals provide a
water- and dust-proof IP 67 design from the outside. The new C65xx
series offers flexible control panel display configuration. The IPC can
be chosen independent of the number and type of control keys or
switches on the control cabinet front. The C65xx series’ compact,
slimline housing with integrated IPC connections at the rear
facilitates a flexible number of buttons in the cabinet front panel,
depending on the application. Equipped with a 3∏-inch Beckhoff
manufactured motherboard, the C65xx Industrial PC series is available
with four types of processors.
