Cannabis Operation Ascends Steep Packaging Learning Curve

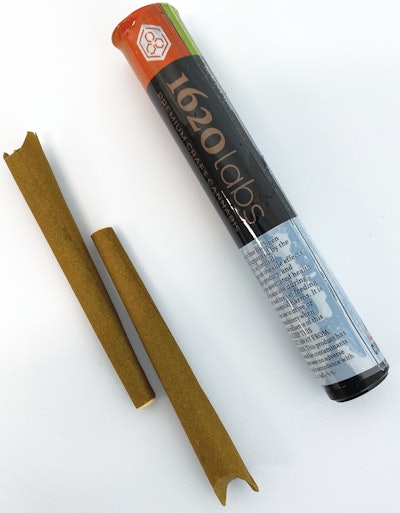

In 2016, when recreational marijuana was legalized in Massachusetts, the idea behind 1620 Labs was hatched. As is often the case when a new market opens up, a vacuum is created that sucks folks in from other markets. In this instance, four local career changers shared a vision of leveraging their combined expertise—namely in horticulture, landscape architecture, real estate, and investing—and applying them to a fledgling industry. In particular, they saw a gap in the market for the highest end, premium cannabis flower for use in pre-rolled cannabis cigarettes (pre-rolls). In a business environment where large companies were flooding this fresh new market with whatever they could grow as soon as they could grow it, 1620 Labs positions itself as a carefully produced craft cannabis cultivator. Example of the J-tube pack of two.

“Even though we’re employing advanced technology [horticulturally speaking], we’re doing things old school,” says Mike Lance, COO, 1620 Labs. “Ours is very much a hands-on approach, with a lot of love and a fierce dedication to the ancient art of thoughtful cultivation. We’re growing plants in small batches using real soil. Instead of using harmful chemicals, we are using all-natural compost tea for fertilizer and have also adopted a natural pest control methodology using primarily beneficial insects, including ladybugs. Our staff is at the facility around the clock taking care of the plants, constantly monitoring the pH balance of the soil, and checking humidity levels in the grow rooms. We harvest by hand, as well as hand trim each flower to produce the highest quality products.”

But, especially with cannabis, starting a business from scratch isn’t just a matter of having a dream and hanging out a shingle. In fact, getting the business up and running was a four-year process, and a very specific order of operations needed to be followed. This included site selection (Athol, Mass.) first, then a lengthy process of town and state approvals for a cultivation license, and only after receiving a provisional license was the company able to concentrate on retrofitting the building to meet the needs of the new business. In March 2020, 1620 Labs received the go-ahead to start growing, and on October 26, 2020, it received authorization from the state to commence operations as an adult-use cultivator. Lance sees his company’s slow but certain path to production as a transformation story, one that isn’t over yet.

“Our commitment to transform Athol and the lives of its citizens will continue to grow with each new harvest,” Lance says. “Likewise, the transformation of our little company will continue with Phase Two as we look to expand our footprint on the property. We own a mill building next to our current facility, with plans to knock it down and build another state-of-the-art grow facility in its place. This new building will be three times the size of our current building—a vital part of our transformation goals to bring more jobs to the area and build on the promise of a better tomorrow.”

Packaging a key component

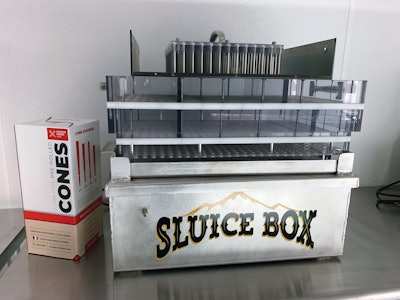

As 1620 Labs began the process of investigating packaging solutions for its product, an industry notion Lance frequently encountered was that packaging was an afterthought; common knowledge held that the product would sell itself. And there was some truth to that—there was a certain period where the cultivators struggled to keep up with new, pent up demand. But Lance looked at it differently.The Sluice Box filling system simultaneously fills 406 pre-roll cone wrapping papers.

“More generally, we knew wanted something that was different than what was out there. A lot of retailers, when I started meeting them, emphasized that the packaging wasn’t necessarily that important yet. It wasn’t what was drawing people to the flowers. A lot of the market is driven by just numbers right now and meeting demand,” Lance says. “But as we went in, we knew that we wanted the full presentation—to have that high testing flower, as well as really nice-looking packaging.”

This is a good place to note that the primary packaging on a pre-roll isn’t discarded, it’s actually consumed (smoked) by the consumer. The packaging in that case—what would have traditionally been called the rolling paper—had to be something that would produce a favorably slow burn compared to other pre-roll paper on the market.

“We aren’t putting trim [also called shake, trim is loose cannabis leaf no longer adhering to the more favorable bud or flower] into our pre-rolls, we’re putting flower in so it’s a really high-quality product going in, and we wanted that to be represented throughout the brand.”

But as career changers coming from landscape architecture, marketing, and finance, the packaging supply chain was a steep learning curve. Director of Marketing Liz Carroll put out a call for samples from suppliers, and there was a wave of possibilities and considerations, but the solution arrived upon was a slam dunk, according to both Carroll and Lance.

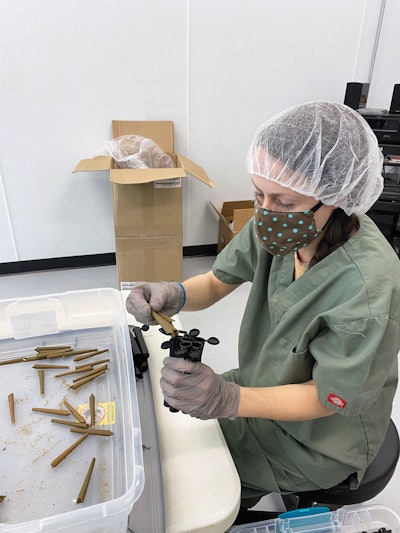

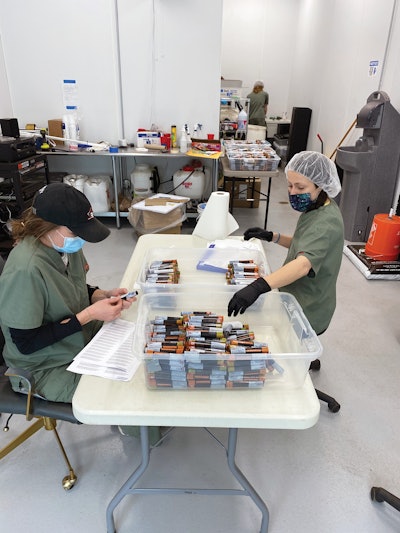

The package system was an 85-mm, 0.5-g pre-roll system, packed either five to a child-resistant paperboard push-pack carton, or two to a child resistant J-tube. Among competitors sampled, “it wasn’t really close, this one was an easy choice,” Lance says.

Soup-to-nuts packaging solution
The company selected Custom Cones USA, a builder of pre-roll machinery and supplier of pre-roll packaging, like cartons and cone-shaped rolling papers. The advantage Custom Cones presented 1620 Labs was the simplicity of a complete, turnkey solution for the emerging pre-roll brand. The supplier was able to provide everything 1620 Labs needed to get that super-premium flower—expensive material that had already consumed so much science, space, light, water, and general TLC—into a pre-roll cone, then into a child-resistant push-pack carton or J-tube, and finally into a corrugated shipper or bin.

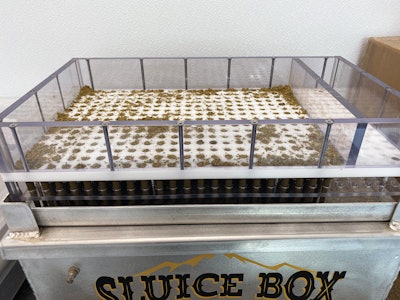

The filling system consists of two cartridges that sit atop a vibratory table that gently vibrates ground flower from the upper cartridge into the cone wrapping papers in the lower cartridge.The most basic unit in the packaging operation is the cone itself—this is a cone-shaped, pre-rolled rolling paper awaiting filling with cannabis flower. Aligning with 1620 Labs’ desire for as natural an operation product as possible, the cones are 100% organic hemp rolling paper. They include an integral folded hemp paper filter structure, best described as a spiral of heavily folded paper that adds stability at the base of the pre-roll where consumers hold it in their fingers or lips when consuming. These cones arrive at the 1620 Labs facility as nested 10-packs.

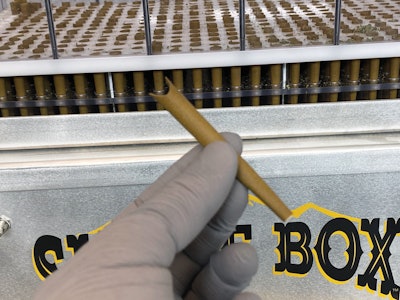

Ready for filling, the cones are hand loaded, open or female side up, into a semi-automatic vibratory filling station called a Sluice Box, sold by Custom Cones. The three-layer filling system consists of vibratory base, a lower receiving cartridge holding the cones, and an upper cartridge from which cannabis flower is dispensed. Watch a brief video on how the Sluice Box works at pwgo.to/5858. The base of the Sluice Box is a vibratory mechanism designed to gently vibrate the cannabis flower from the upper cartridge into the cones in the lower cartridge. The lower cartridge consists of slots designed to hold the cones. The company uses a Sluice Box with a 406-slot cartridge for 85-mm cones, but for larger 98-mm and 109-mm cone sizes, a cartridge containing 325 slots is available.

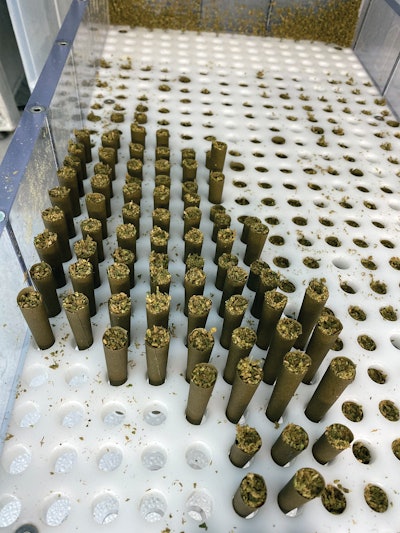

Once the cones are loaded (which takes about 15 minutes), the upper cartridge with a corresponding slot pattern is placed on top, and the hand trimmed cannabis flower is placed loosely into it. Turning on the system, vibrations shake the flower into the cones lined up beneath the upper cartridge slots.
