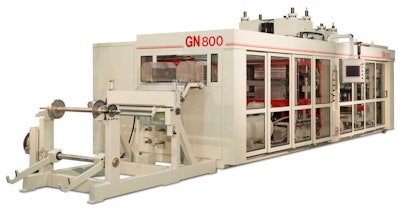

The GN800 was developed in partnership with Agripak s.r.l., Milan, Italy. GN bought the rights to Agripak’s original machine design and added new features and technologies. The enhancements offered in this new thermoformer came in response to input from customers and tool makers to ensure GN’s new machine would meet today’s changing market conditions.
The GN800 has a forming area of 800 mm x 570 mm (31.5-in x 22.4-in), is capable of forming 150 mm above and below the sheet line, and the cutting force of the forming and cutting stations is 75 tons. The GN800 also has additional space between the forming and cutting stations, providing extra cooling time when running heavier gauge materials or PP.
The GN800 features a standard oven which is four times the index length of the forming area. The machine incorporates high-efficiency Solar heaters and is equipped with cut-in-place capabilities as a standard feature.The unit also features independent top and bottom servo-plug drives for better material distribution.
The GN800 handles sheet widths up to 880 mm (34.6-in). The machine can run sheet thicknesses ranging from 0.25 mm (0.010-in) to 1.5 mm (0.060-in). The unit comes fully equipped and handles all thermoformable grades of PET, OPS, HIPS, PLA, PP, and PVC. The company is currently targeting food, medical, and industrial packaging. The GN800 thermoformer is competitively priced with many options and features listed above included as standard.
