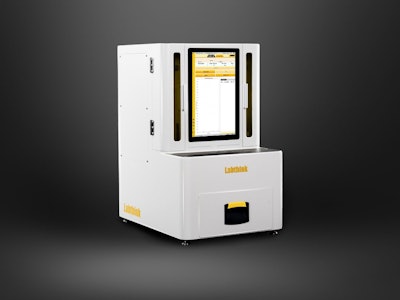

Labthink’s C690H Nondestructive Package Leak Detector is based on the testing principle of the vacuum decay method, designed and manufactured according to ASTM F2338 and other standards. It is suitable for batch sealing leak detection of vials, and trace leakage detection of ampoules, cartridge bottles, infusion bottles, prefilled syringes and other pharmaceutical packaging.
This instrument is designed with many useful features to meet user needs and can be customized for non-standard test requirements.
Batch Testing
Equipped with fully automatic gravity fed sample feeder, which is Labthink’s latest scientific and technological achievement that facilitates continuous testing of 20 to 120 samples.
A & B dual-channel design can test samples of two different specifications simultaneously.
The target vacuum degree can be set by the operator to meet test specifications of different samples.
Dual methods of vacuum decay and pressure decay provide the flexibility to accommodate various types of package samples.
Precise Data
Advanced pressure detection technology, using world renowned components for data stability not affected by ambient environment.
Advanced microflow automatic flow control technology that accurately simulates different sizes of leakage holes without manual adjustment.
Both the differential pressure transducer and flow meter are traceable to NIST.
The system can achieve high test repeatability of ±1um.
Intelligent Control
15.6" embedded touch tablet computer with Windows OS.
New longitudinal interface layout, and easy to use graphic user interface.
Automatic alarm, automatic capture, automatic collection of unqualified samples.
The pressure curve is displayed in real time, and the test results are counted automatically.
Leakage rates are calculated automatically.
The system is equipped with various sensors as intelligent reminders for safe operation and control.
A universal printer can be connected for test results output.
The system features embedded USB and network ports to facilitate external access and data transmission of the system.
