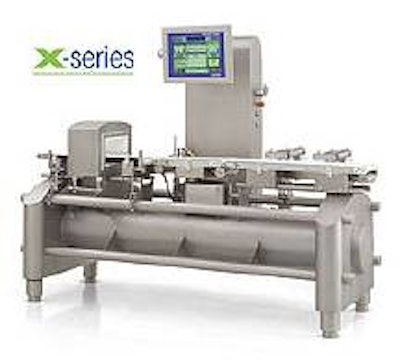

X-series is the premier system available that features a highly visible, touch-controlled 15'' user interface, washdown capability proven to IP 69K standards, intuitive tool-free maintenance, and a single controller that seamlessly integrates multiple inspection functions.
X-series is the most advanced product inspection system in the world.
Count on it—Hi-Speed, Garvens, and Safeline, the METTLER TOLEDO Product Inspection Division, deliberately designed X-series for outstanding
durability and mission critical reliability. Rugged and precise METTLER TOLEDO weighing technology ensures checkweighing accuracy. X-series materials and components ensure long-term service and serviceability, with parts available worldwide.
X-series control
User interface: 15" TFT high contrast, color, touch screen display
Product memories: Up to 250
Zones: 3 zone standard, 5 and 7 zone optional
Standard user security: Access levels for Monitor, Operrator, Quality,
Supervisor
Configurable user security: Ability to add new security levels with tailored access to specific functions
Statistics: Mean value, standard deviation, total checked, total accepted,tracking of TU1 & TU2 values, and statistics if applicable
Reports: Total, hour, interval, and batch statistics, product set-up, zone analysis, status messages
Data interfaces: One (1) printer port, two (2) serial ports configurable to RS232, RS422, or RS485
Optional interfaces: Pulsed or timed filler feedback, DeviceNet, ControlNet, Ethernet/IP, and Modbus TCP
X-series specifications:
Capacity: 6000g
Checkweighing range: 60g to 6000g
Increment size: Selectable from 5g to 0.001g in increments of 1, 2, or 5
Accuracy: ± 200mg*
Rate: Up to 300 ppm*
Speed range: 50 FPM to 350 FPM (15 m/min to 105m/min)
Available weigh belts: 200mm wide x 300mm or 400mm long, 300mm wide x 500mm long
Infeed & discharge belts: 200mm wide x 400, 600, 800, or 1000mm long, 300mm wide x 600, 800, or 1000mm long
Weighing technology: METTLER TOLEDO MonoBloc™ Electromagnetic Force
Restoration (EMFR) weigh cell
Protection & construction: IP 69K & 300 series stainless steel
Operating range: 0º C to 40º C (32º F–104º F), 0%–95% relative humidity
non-condensing
Power requirements: 120/240 VAC ± 10%, single phase, 50/60Hz
