Syntegon: Cartoner with Integrated Delta Robots

Sigpack TTMD—designed for flexibility in product feeding—features flexible product presentation thanks to flat or on-edge carton loading as well as patented tool-less format changeover for vertical restart.

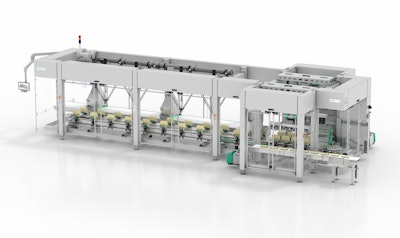

Syntegon has expanded its secondary packaging portfolio with a machine designed for even more flexibility: the Sigpack TTMD combines core technologies of the TTM platform with one or more seamlessly integrated Delta robot cells for carton loading – hence the D in the product name. It handles products including food and certain pharmaceutical applications.

The robotic system's camera-based vision control system detects products on the infeed belt. The delta robots pick single or multiple products arriving in random order and reliably place them in cartons, trays or other containers according to specifications. To enable additional packaging flexibility, the new topload cartoner can also simultaneously pack different products from several infeed processes. The Sigpack TTMD uses the proven tool-less format changeover concept from the TTM platform, enabling a vertical restart after each format change.

With the integrated Delta robots, the trusted TTM (on the market for ten years) features new product and pack style variations with the TTMD.

Modular integration of Delta robot cells

Each cartoning machine can be equipped with one or more Delta robot cells. A camera-based vision system detects the position of the individual products on the infeed belt. The pick rate of the delta robots depends much on the product. Typically it is between 60 and 90 products/min, and can go up to as many as 120 products/min.

Following the single- or multi-pick process, the robotic arms pick the products from the belt and place them in the cartons either in a flat or on-edge position. The process is organized according to the counterflow principle: the cartons move in the opposite direction to the product. This reduces the reject rate and makes sure that each carton is filled correctly. The Delta robots can track on the infeed conveyor and the carton transport, which allows the products to be continuously loaded into the cartons.

The core of the Sigpack TTMD consists of a TTM1 or TTM2 topload cartoner for forming and closing. The Sigpack TTMD has a maximum output rate of 150 cartons/min.

Flexible presentation at the point of sale

Consumers ask for a wide selection of products, which is mirrored by a broad retail offering. The Sigpack TTMD cartoner increases presentation options at the point of sale: it offers the possibility of inserting the products either flat or on-edge into the carton. Since products from several process sources can be fed into the TTMD, a selection of different products, such as small bags containing different snacks, can be packed into one carton.

Quality assurance thanks to end-to-end carton control

Another core technology of the TTM platform is its full carton control from forming to loading, which is also used in the Sigpack TTMD. Each carton is placed on a separate carton carrier.

Fast format changes and less rejects

The Sigpack TTMD is designed to be easily accessible, easy to clean, and uses Syntegon's patented tool-less format changeover concept. Thanks to pre-set format rods, the settings are clear and sources of error can be minimized. A single operator is able to perform format changes independently and restart the machine within a very short time without having to readjust the format parts.
