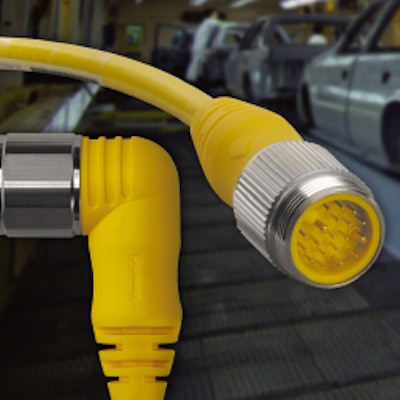

The 19-pin minifast connector is rated for up to 300 volts and 4 amps
per pin, and joins the existing 9, 10 and 12-pin 1 1/8-in. minifast
connector line. Additional minifast connector sizes and pin counts are
also available, including a 7/8-in. connector with 2 through 6 pins, as
well as a 1-in. connector with 6 through 8 pins. All connectors
provide IEC IP 68 protection. The minifast line offers male or female,
straight and right angle connectors, standard and custom lengths, and
pigtails or extensions. Fully encapsulated mating receptacles with
nickel-plated brass housing, as well as 1/2-in.-14 NPT, 3/4-in.-14 NPT,
PG 16 and M20 mounting threads complete the system.
