Carlo Gavazzi: Inductive proximity sensors with IO link

Carlo Gavazzi offers the ICB 12, 18 and 30 Series inductive proximity sensors for contactless and wear-free detection of metallic objects. They are available in durable nickel-plated brass housings, offered in three diameters: M12, M18, and M30, with an extended sensing distance range between 4 and 22 mm. They are also available with an M12 plug or two-meter PVC cable.

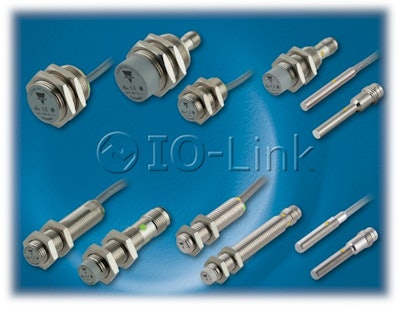

Inductive proximity sensors with IO link
Inductive proximity sensors with IO link

Once connected to an IO-Link master, these sensors can be easily and completely configured; enabling additional advanced functionalities such as the detection counter (RPM) and the speed controller. Each sensor then becomes fully programmable and provides the means for hundreds of configurations in one single device.

IBS 04 and ICS 05/08 Proximity Sensors with IO-Link features:

• IP67 Stainless steel Ø4, M5 or M8 barrel housing

• Sensing distance from 0.8 mm up to 4 mm

• Flush and non-flush versions

• Output DC 100 mA

• NPN or PNP, NO or NC or programmable

• 2 m PVC cable or M8-plug

• Up to 2kHz (M8) or 6kHz (Ø4 or M5) operating freq.

• Adjustable sensing distance and hysteresis and configurable output

• Clearly visible LED with diagnostic functions

• Operating temp.: -25°C to +80°C (-13°F to +176°F)

• IO-Link communication V 1.1

ICB 12/18/30 Proximity Sensors with IO-Link features:

• IP67 Nickel-plated brass M12, M18 or M30 cylindrical threaded barrel housings

• Sensing distance from 4 mm to 22 mm

• Flush and non-flush versions

• Output DC 200 mA

• 2 m PVC cable or M12-plug

• Up to 2 kHz operating frequency

• Adjustable sensing distance and hysteresis and configurable output

• Operating temp.: -25°C to +70°C (-13°F to +158°F), and -40°C to +70°C (-40° to +158°F) for M12-plug version

• IO-Link communication V 1.1

The IO-Link inductive sensors were designed for use in specific markets such as plastic and rubber, material handling, packaging, and machine tool, providing the ideal solutions for demanding application needs.

The Inductive Proximity Sensors with IO-Link are available from Carlo Gavazzi's network of sales offices and distributors in the Americas, or at www.GavazziOnline.com.
