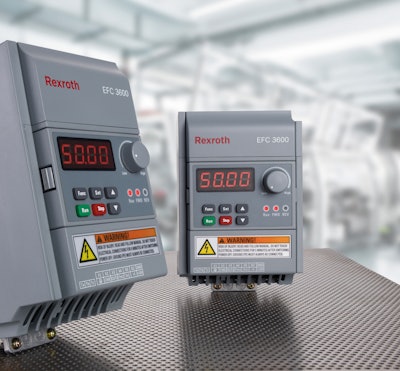

Bosch Rexroth’s new electronic frequency converter series EFC 3600 offers an economic solution for energy-efficient process control application.
Variable speed control for electronic drives is a main factor for increasing energy efficiency in machine engineering. With the EFC 3600 variable frequency drive series, Bosch Rexroth offers economic benefits for general automation, material handling, and pumps as well as fans and compressors.
The EFC 3600 complements the existing product portfolio, including the Fe and Fv frequency converters, which cover the performance spectrum up to 90 kW, as well as the IndraDrive platform. The EFC 3600 improves the process control through integrated PID controllers as well as through a sequence control system with eight steps. The settings enable an energy-efficient operation of equipment and machines at their optimal operating point. Due to its high intermittent overload capacity of up to 200%, as well as the high initial torque of up to 150%, the EFC 3600 can be used for a wide range of applications with the most varying requirements. The freely scalable V/Hz characteristic allows load-dependent adjustment of the voltage/frequency curve, which ensures a longer motor service life.
The EFC 3600 can be connected to other automation topologies via optional Modbus or Profibus fieldbus interfaces or via digital and analog inputs and outputs. The EFC 3600 covers the performance spectrum from 400 W to 4 KW. Due to the integrated brake chopper and mains filter, additional peripheral devices are not required. The EFC 3600 complies with the EMC directives for industrial applications.
The simple program structure and easy parameter input provide quick commissioning and startup without the need for a PC. Harmonized parameters apply to all converters of the series. With the removable control panel function, the user can quickly configure several electronic frequency converters. This also reduces integration and downtime in case of system expansion or replacement. The service technician would simply use the control panel and copy the existing parameters to the new device.
Due to its compact design, which is complemented by the pluggable I/O terminals and optimized cooling concept, a gapless side-by-side and space-saving installation is possible. For devices up to 0.75 kW, cooling fans are not required. Devices with performance level 1.5 kW and higher are supplied with integrated fans that can be easily accessed without requiring tools for maintenance.
