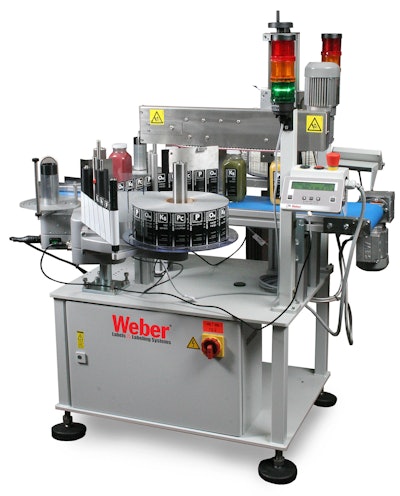

Weber Packaging Solution’s Model 114 front-back labeling system is a self-contained unit that features one or two Alpha Compact label applicators mounted on a sturdy, fully adjustable base. The 114 applies pressure-sensitive labels on straight-wall containers and has a label placement accuracy of ±0.03 in. Labels up to 6 in. high and 12 in. long can be applied to a variety of product sizes by using the system’s adjustable guide rails.
Products are delivered to the applicator via a 7.75-in.-wide, 45-in.-long conveyor, which permits item transfers at both the entry and discharge ends. Products are secured by a top hold-down belt right before the label is applied, ensuring that the items do not shift.
During application labels are peeled away from the liner and securely affixed to products through the use of a wipe-on applicator. The Weber 114 can also be configured with a second Alpha Compact applicator, enabling it to label two sides of a product at the same time.
The Weber 114 is suitable for up to 25 products/min, making it a cost-effective system for low-volume, two-sided labeling applications such as square-sided beverage containers with unique front and back labels.
