I/O Modules

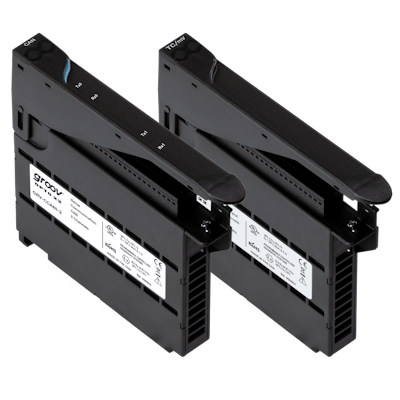

The GRV-CCANI-2 (serial communication, 2 channels, CAN 2.0B, channel-to-channel isolation) is the first module in the groov EPIC platform to provide hardware support for an industrial field bus. This new module enables existing CAN networks to be brought into IIoT applications using groov EPIC’s fluid IT/OT connectivity tools, like Ignition Edge®, Node-RED, and MQTT. groov EPIC also supports integrating CAN data into control applications using IEC 61131-3 languages, and enables mobile visualization of CAN data using groov View™. Up to 8 CAN buses per processor at network speeds up to 1 Mbps are supported.

The GRV-ITM-12 (analog input, 12 channels, thermocouple or millivolt) provides a high-density, low-cost temperature sensing option with two isolated zones and 6 channels per zone. Each channel is software configurable to one of seven millivolt ranges or eight thermocouple types (Type B, E, J, K, N, R, S, T). GRV-ITM-12 is accurate to 0.1% of the configured range over 20-bit resolution for V/mV sensing, with accuracy ranging from 2.0-5.0 °C for thermocouple sensing.

Availability
GRV-CCANI-2 ($395) and GRV-ITM-12 ($675) are now available. All modules can be purchased through Opto 22’s global network of distributors and system integrators, or directly via www.opto22.com.
