Advanced features include automatic setup with multiple programmable label pages for easy change-overs to labels of different sizes, rate compensation for improved label placement accuracy, and advanced user-configurable I/O connectivity. All these handy features greatly simplify setup and change-overs. Its rugged stainless steel and anodized aluminum construction is corrosion resistant providing long-lasting durability and maintenance-free operation in the most hostile environments. Like all Label-Aire printer applicators, the 3138-N is compatible with any O.E.M. printer on the market.

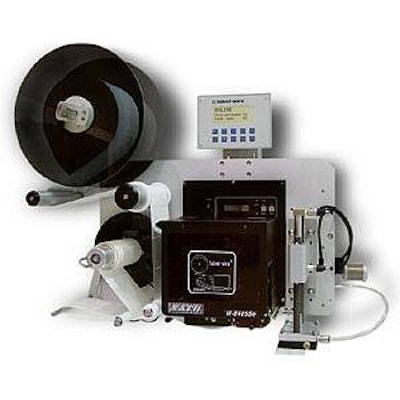

The Model 3138-N Printer Applicator is built to meticulous quality standards and designed to withstand the most intense operation.
Automatic setup includes multliple programmable label pages for easy change-overs to different label sizes.
Digital display for remote operator control capability.
Flash memory allows easy download of system software updates.
Rate compensation for improved label placement accuracy.
Advanced I/O allows user-configurable output.
Heavy duty air cylinder for 24/7 label application.
Compatible with any O.E.M. printer on the market.
Specs
Dimensions: Height: 23.3” (592 mm), Length: 28.7” (728 mm), Width: 25.6” (650 mm)
Weight: 165 lbs. (75 kg)
Label Dimensions: Label Width: Up to 7.2” (183 mm), Label Length: Up to 7” (178 mm) (Printer dependent)
Dispense Speed: Up to 12” (305 mm) per second depending on printer and label size
Label Placement Accuracy: Up to +/- 1/32” (0.8 mm)
Electrical: 115 Volts AC 60 Hz 3 Amps., 220 Volts AC 50 Hz optional
Air: 4 cfm at 90 psi for most applications
Options: All O.E.M. print engines, 17" (432 mm) powered unwind, Label on pad detection
(Consult factory for additional options.)
