In contrast to the ARM9 architecture, the ARM Cortex A8 processor used in the CP26xx Panel PC series has a hardware-based floating point unit, which makes floating point operations (Real, LReal) significantly faster. TwinCAT automation software from Beckhoff turns the Panel PC into an all-in-one HMI, PLC, and motion control system.
The CP26xx features a 1 GHz ARM Cortex A8 CPU with access to 1 GB internal DDR3 RAM memory. The standard operating system is Microsoft Windows Embedded Compact 7. Additionally, a 256 MB Micro SD card is included as standard and up to 4 GB are optionally available. A 128 kbyte NOVRAM helps ensure fail-safe storage of TwinCAT process data. Also available is an on-board 10/100BASE-T Ethernet adapter, an EtherCAT adapter with RJ-45 connector and an RS-232 interface with two USB-2.0 ports.

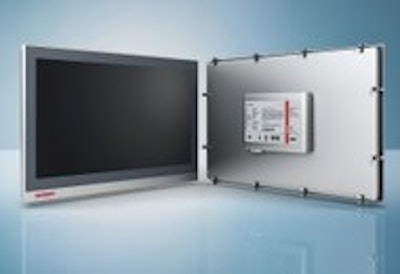

The aluminum panel housing, with high-quality glass front, offers IP 65 protection at the front and IP 20 in the back. Users have a choice of eight different multi-touch TFT displays in sizes between 7-in. and 24-in., as well as 4:3, widescreen, landscape or portrait formats. The operating temperature range for the panels is 0 to 55 °C.
