Linear stepper

Nov 2, 2008

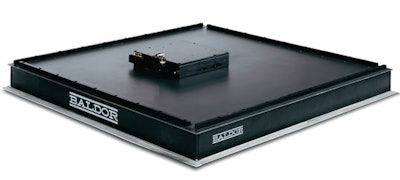

Baldor’s HoneyComb Series X-Y linear stepper positioning bases are capable of move speeds of up to 1.5 meters/sec at resolutions to 2.5 microns and with a repeatability of better than 2 microns. Each base’s moving element, the forcer, floats on an air bearing and integrates two linear stepper motors mounted at right angles to each other to provide X and Y directional thrust. Forcer is available in six sizes and in two- or four-phase configurations, depending on the application’s force and resolution requirements. Bases are available in seven standard sizes with square or rectangular working areas ranging from 375 x 375 to 750 x 1500 mm.

Phone: 479/646-4711 | www.baldor.com
