Eight standard sizes are available, ranging from 12 to 63 mm bore and standard stroke lengths from 1/8" to 47/8" in 1/8" increments.
Guide rod cylinders

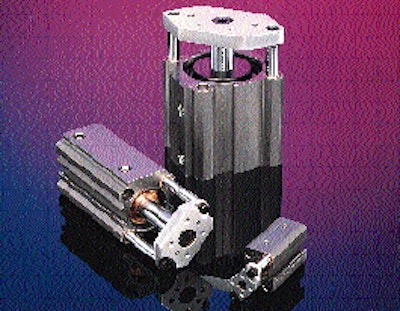

Compact non-rotating guide rod cylinders from PHD, Inc. (Fort Wayne, IN) are used for point-to-point motion applications where space is limited. The CTS Series has a twin-guide rod construction to prevent rotation of the tooling connected to the cylinder.
May 31, 1996
