Inline Cup & Tray System Reaches Speeds to 120 Cycles/Min

New system from Ohlson Packaging handles a range of filling applications, accommodating up to six lanes at speeds to 20 cycles/min/lane.

Anne Marie MohanSenior Editor

Sep 25th, 2019

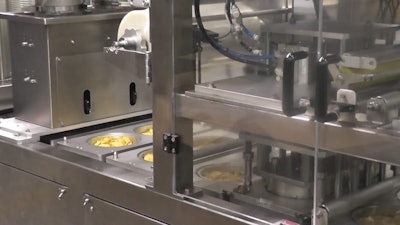

The new Inline Cup and Tray System is designed for liquid, powder, scale, volumetric, hand, and specialty filling.

The new Inline Cup and Tray System is designed for liquid, powder, scale, volumetric, hand, and specialty filling.

At its PACK EXPO Las Vegas booth, Ohlson Packaging, a Duravant company, exhibited its new Inline Cup and Tray System. The machine is designed for liquid, powder, scale, volumetric, hand, and specialty filling, accommodating up to six lanes of cups or trays ranging from 2 to 12 in. wide, at speeds to 20 cycles/min/lane.

The cup and tray system also allows for modified atmosphere packaging as well as automatic lid placing, shrink banding, date coding, labeling, automatic case packing, and a case-shrink system.

It also integrates seamlessly with Ohlson Packaging’s existing products, such as multi-head and linear scales, conveyors, and other packaging automation equipment.

“We are continually proud of what our team is able to develop to meet the packaging demands of our customers,” said John Ohlson Jr., President and CEO of Ohlson Packaging. “This new system will allow us to help even more companies improve their operations.”

Among the features of the machine are the following:

Traveling indexing assembly
Top-sealing station with optional gas flush
Quick tool change for different containers
Variable speed infeed/discharge conveyor
No container – no fill sensor
Safety switches and E-stop
Stainless steel framework and food-grade materials
Fully adjustable guide rails
Anti-vibration leveling feet
Easy-to-use color touchscreen operator interface
PLC controls

Watch a video of the system here.
