Camozzi Pneumatics: Cylinder

Camozzi Pneumatics’ Series 6PF Positioning Feedback Cylinder was designed to increase both precision and control in its pneumatic actuators

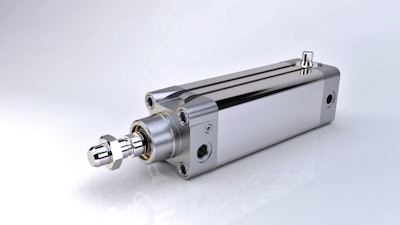

Series 6PF Positioning Feedback Cylinder
Series 6PF Positioning Feedback Cylinder

In compliance with ISO 15552 standards, the Series 6PF is equipped with a potentiometric transducer of a linear position integrated inside the rod. This type of cylinder, when used with the LRXA4 proportional servo valve, makes it possible along the entire stroke to constantly control the position of the rod. The pistons of the Series 6PF are equipped with specific seals for increased accuracy and a permanent magnet in order to use external end-stroke sensors.

The sturdy design, high performance and flexible installation make the Series 6PF ideal for use in applications including: tensioning cylinders, positioning cylinders and filling/cutting/measuring systems. Technical specifications include:

• Bores from 50 mm to 125 mm

• Standard strokes from 50 mm to 500 mm (50 mm intervals)

• ISO 15552 compliant

• Protection class IP67

• Assembly with standard ISO accessories
