Weiler Labeling Systems: High-speed labeler

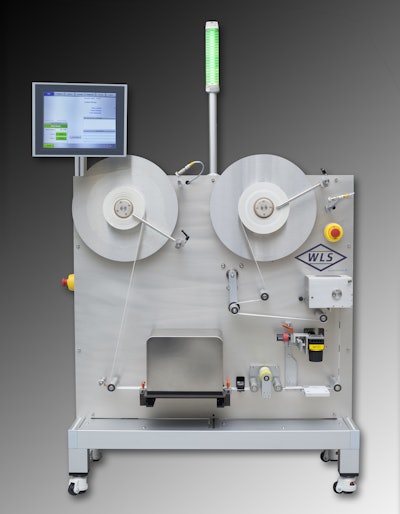

The LP-100 features a UV-curing drop-on-demand (DOD) printer from Greydon, another Pro Mach company, that can print high resolution line barcodes, serialized 2D data matrix bar-codes and human readable codes, as well as the full label including high-impact visual graphics in full color or black-and-white at speeds up to 7,500 in./min. It offers superior print quality and print wear resistance on most substrates without the need for special coatings or pre-printed areas.

The LP-100 enables customers to digitally print on demand and thereby reduce the number of different labels held in inventory. An optional Interceptor is available, which automatically removes rejected labels from the roll.

The LP-100 handles a label roll size up to 18 in. (457 mm) in diameter with a 3-in. (76 mm) diameter core. Print changes are quickly made via recipe downloads on the color touchscreen control panel. Label styles can be changed in less than 5 minutes with no tools required and no change parts. Low level, end-of-web and broken web detection can be programmed to flash a light and/or send an alarm to operators. The HMI is password protected with multiple levels of access to help secure the operation.
