The NBE variable container filling system has a proprietary densification design integrating two densifying methods. This NBE design enables varied container types to be processed through the same fill station. The NBE design ensures precise fill volume and weigh accuracy, optimal line speed, reduced material waste, and eliminates material contamination resulting from operator hand leveling of material.

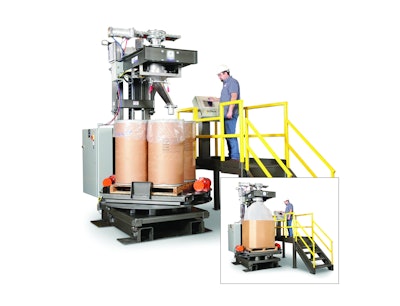

When in the multiple container mode, the NBE variable container filling system uses an automated, vibratory densifier pad to individually densify each drum on a pallet. The densifier arm and pad automatically extend from the unit to densify one drum at a time. When a drum fill/densification cycle is complete the pallet deck rotates to repeat the cycle with each drum on the pallet. This one-by-one densification eliminates the problems common with rotating fillhead designs that vibrate the entire base of the unit; these problems include drums bouncing out of the unit, and operators reaching into equipment during densification to stabilize drums.
When in the single container mode, the NBE variable container filling system uses a deck-only vibratory densifier for large, single containers such as gaylords, totes, and bulk bags. The NBE design isolates 3 Gs of vibration force to the deck of the system rather than vibrating the entire base of the unit. This isolated vibration concentrates the vibratory effect to the container enabling precise material fill volume and weigh accuracy. The isolated vibration also eliminates the damaging and annoying transfer of vibration to surrounding equipment and work areas common with conventional densifiers.
The NBE variable container filling system is designed with a completely integrated, NTEP-certified weigh system. A single, UL listed, menu-driven controller, designed and built by NBE, meters material feed rates based on container type, material type, densification cycles, and finished package weight. The NBE variable container filling system can weigh containers with capacities from 250 to 4,000 pounds to an accuracy of plus/minus .01%. The NBE NTEP-certified weigh system eliminates material waste common with manual designs. Operator interaction is limited to controller operation and container loading and unloading.
