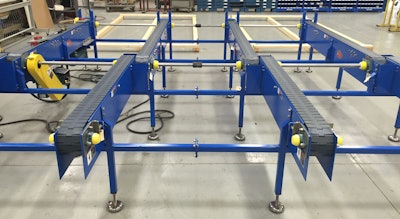

Sprockets are keyed inline so each sprocket engages the chain at the same time and each chain moves in time with one another. This reduces product skewing across all four strands. The system was engineered to convey 260 lbs. of products, approximately 60 lbs. per chain, or 560 pounds total weight at any given time across 12 ft. of conveyor chains.
Due to the product width, the system has joining shaft configurations for 8 narrow chains versus one wide costly belt conveyor. The multiple strands also distributes the weight evenly to reduce chain pulls.
The front end of the line accumulates the cartons by indexing which then transfers to the second series of chains. The cartons are then halted by fixed end stops where they are robotically removed from the line and palletized.
This system has take-up assemblies that tightens the chains for indexing; common drive shafts; and common support structures incorporated into it, all used in conjunction with System Plast chain.
Safety features built into the system include silver chain shaft cut-out guard with end caps, bearing covers, finger guards and yellow chain safety guarding. This conveyor is designed to run at 30 FPM @ 60 hertz based on a product load of (10) pounds per lineal foot of conveyor (distributed load) with 100% accumulation.
